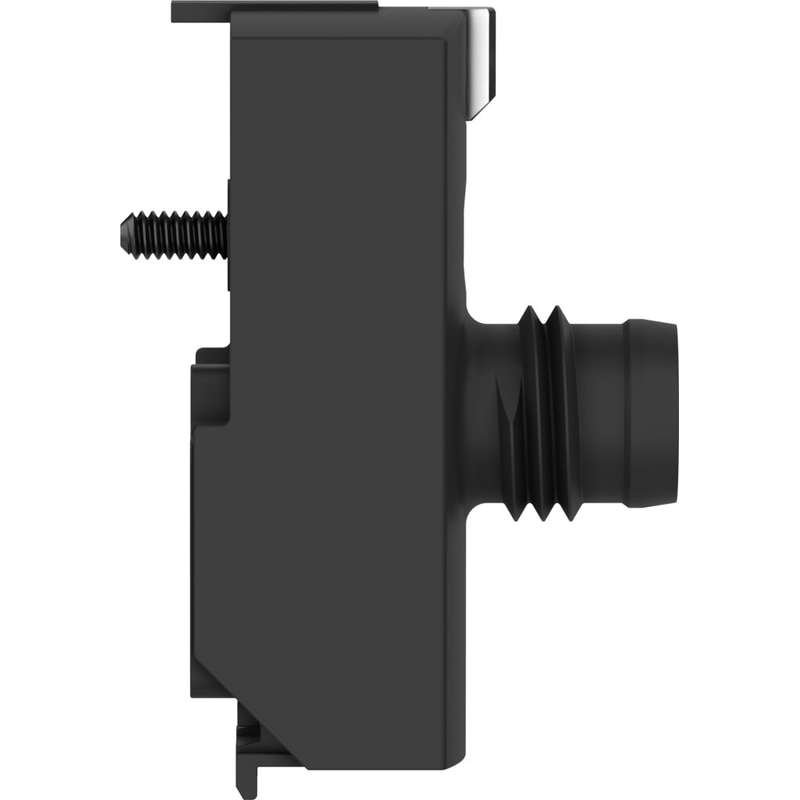

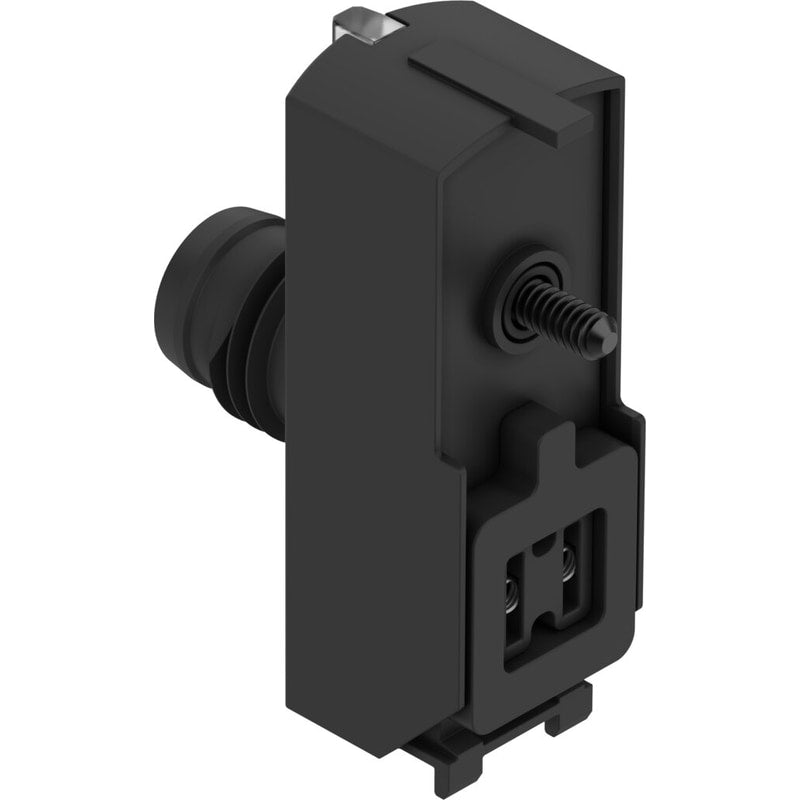

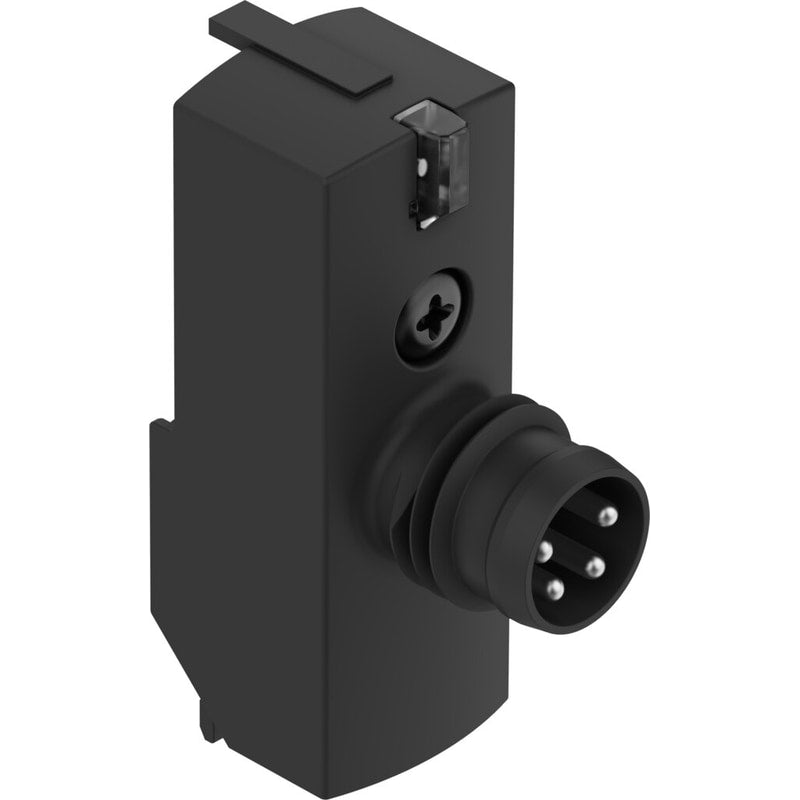

Electrical sub-base
VAVE-L1-1R1-LR
573922
GTIN 4052568059279
Vendor Festo
Regular price
$16.76
Unit price
VAVE-L1-1R1-LR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAVE-L1-1R1-LR
Regular price
$16.76
Unit price
VAVE-L1-1R1-LR is backordered and will ship as soon as it is back in stock.
| Contamination level | 3 |
|---|---|
| Surge resistance | 0.8 kV |
| Type code | VAVE |
| Mounting position | Any |
| Reverse polarity protection | Bipolar |
| Additional functions | Spark suppressionHolding current reduction |
| Signal status display | LED |
| Nominal operating voltage DC | 24 V |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Degree of protection | IP65 |
| Ambient temperature | -5 °C ... 60 °C |
| Certification | RCM compliance mark |
| Max. tightening torque | 0.27 Nm |
| Product weight | 3.2 g |
| Electrical connection | M8 / -4-pin/2-pinPlug/socket |
| Protective earth connection | Not available |
| Type of mounting | On air solenoid valve with self-tapping screw |
| Housing colour | Black |
| Note on materials | RoHS-compliant |
| Housing material | PA |
