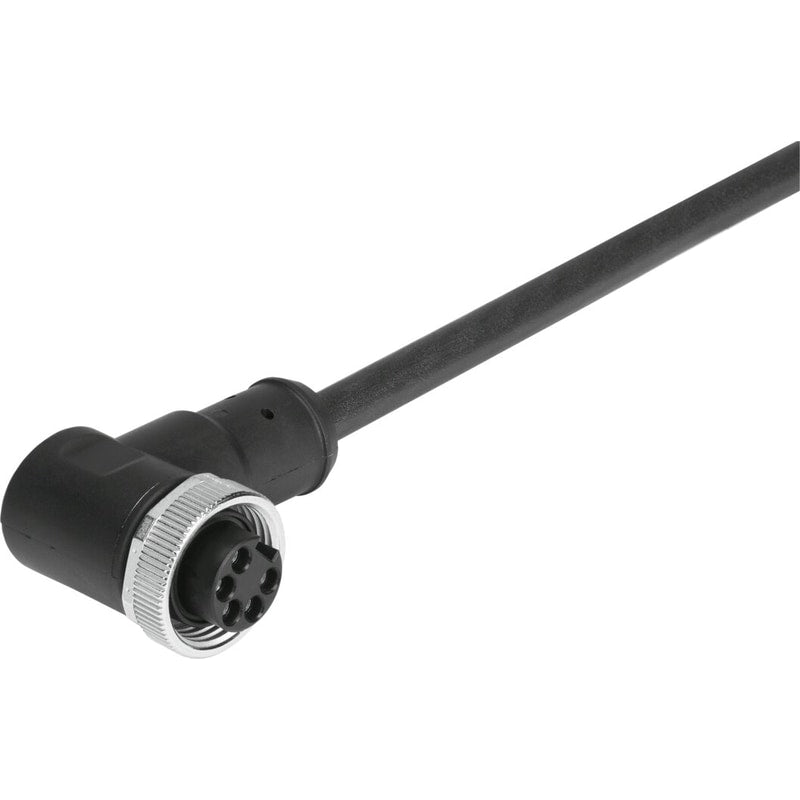

Power supply socket
NEBU-G78W5-K-2-N-LE5
573855
GTIN 4052568102913
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- G7/8 coded as per NFPA/T3.5.29 R1-2007
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Cable length
- 2 m
Regular price
$89.49
Unit price
NEBU-G78W5-K-2-N-LE5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBU-G78W5-K-2-N-LE5
Regular price
$89.49
Unit price
NEBU-G78W5-K-2-N-LE5 is backordered and will ship as soon as it is back in stock.
| Type code | NEBU |
|---|---|
| Based on norm | NFPA/T3.5.29 R1-2007 |
| Cable designation | Without label holder |
| Contact durability | 100 |
| Product weight | 300 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | G7/8 coded as per NFPA/T3.5.29 R1-2007 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, occupied pins/wires | 5 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 995652 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 5 |
| DC operating voltage range | 0 V ... 300 V |
| Operating voltage range AC | 0 V ... 300 V |
| Current rating at 40°C | 0.375 |
| Surge resistance | 4 kV |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 65 mm |
| Cable diameter | 8.7 mm |
| Cable diameter tolerance | ± 0.2 mm |
| Cable design | 5 x 1.5 mm² |
| Nominal conductor cross section | 1.5 mm² |
| Degree of protection | IP65IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -20 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Black |
| Housing material | TPE-U(PUR) |
| Housing colour | Black |
| Material of screw-type lock | Brass, nickel-plated |
| Material of pin contacts | Brass, gold-plated |
