CPX-4AE-U-I

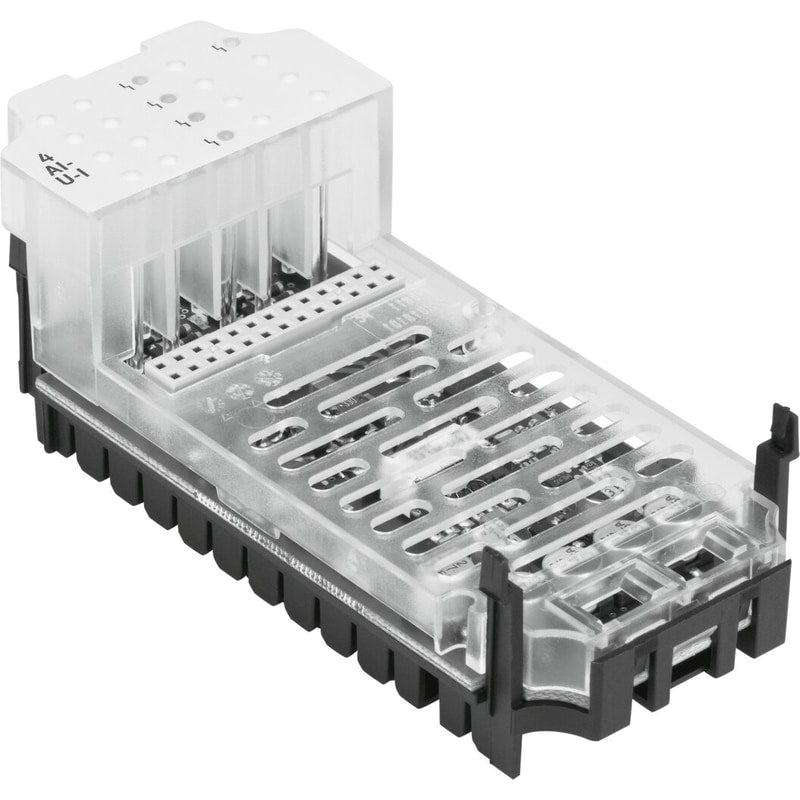

analogue module CPX-4AE-U-I Dimensions W x L x H=(* (incl. interlinking block and connection technology), * 50 mm x 107 mm x 50 mm), No. of inputs=4, Diagnosis=(* - Wire break per channel, * - Limit value violation per channel, * - Parameterisation error, * - Overflow/underflow, * - Inlet overload, * -Short circuit in the sensor supply), Parameters configuring=(* - Data format, * Forces per channel, * - Limit monitoring/channel, * - Measured value smoothing, * - Sensor supply active, * - Signal range per channel, * - Behaviour after short circuit, * - Behaviour after inlet overload, * Monitoring of wire break/channel), LED displays=(* - 1 Group diagnosis, * - 4 Channel diagnosis)

Dimensions W x L x H	(incl. interlinking block and connection technology)50 mm x 107 mm x 50 mm
No. of inputs	4
Diagnosis	'- Wire break per channel- Limit value violation per channel- Parameterisation error- Overflow/underflow- Inlet overload- Short circuit of sensor supply
Parameters configuring	'- Data formatForces per channel- Limit monitoring/channel- Measured value smoothing- Sensor supply active- Signal range per channel- Behaviour after short circuit- Behaviour after inlet overloadMonitoring of wire break/channel
LED displays	'- 1 Group diagnosis- 4 Channel diagnosis
Internal cycle time	500 µs
Repetition accuracy	0.1% at 25º C
Protection (short circuit)	Internal electronic fuse
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typically 50 mA
Operating error limit related to the ambient temperature range	'+/- 0,3 %
Basic error limit at 25°C	'+/- 0,2 %
Nominal DC operating voltage, load voltage	24V +/- 2%
