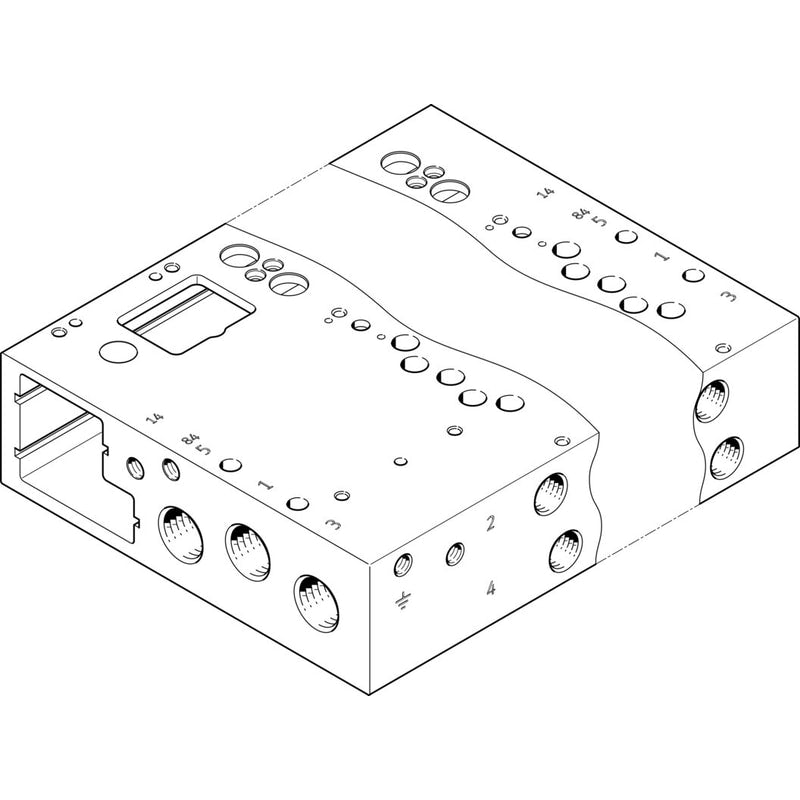

Manifold rail
VABM-L1-14W-G14-8-GR
573504
GTIN 4052568220815
Vendor Festo
Regular price
$215.92
Unit price
VABM-L1-14W-G14-8-GR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABM-L1-14W-G14-8-GR
Regular price
$215.92
Unit price
VABM-L1-14W-G14-8-GR is backordered and will ship as soon as it is back in stock.
manifold rail VABM-L1-14W-G14-8-GR Grid dimension=16 mm, Assembly position=Any, Max. number of valve positions=8, Corrosion resistance classification CRC=2 - Moderate corrosion stress, Storage temperature=-20 - 60 °C
| Grid dimension | 16 mm |
|---|---|
| Assembly position | Any |
| Max. number of valve positions | 8 |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-20 ... 60 °C |
| Authorisation | c CSA us (OL)c UL us - Recognized (OL) |
| Product weight | 1,243 g |
| Auxiliary pilot air port 12/14 | M5 |
| Pilot exhaust port 82/84 | M5 |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/4 |
| Pneumatic connection, port 4 | G1/8 |
