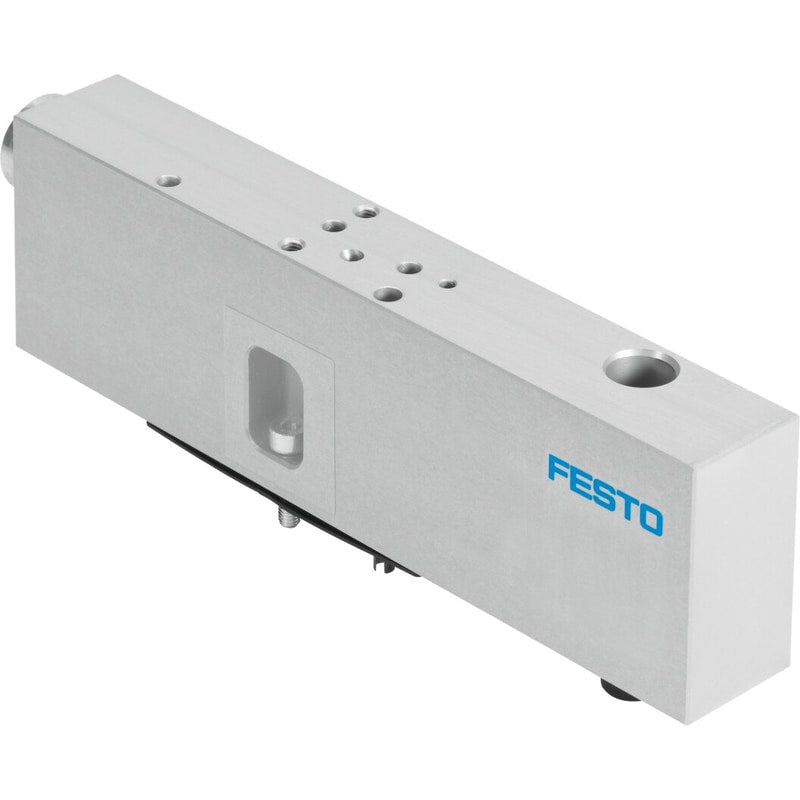

Intermediate plate
VABF-S4-2-S
573200
GTIN 4052568219758
Vendor Festo
Regular price
$222.92
Unit price
VABF-S4-2-S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S4-2-S
Regular price
$222.92
Unit price
VABF-S4-2-S is backordered and will ship as soon as it is back in stock.
intermediate plate VABF-S4-2-S Width=18 mm, Based on the standard=ISO 15407-2, Assembly position=Any, Operating pressure=3 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4]
| Width | 18 mm |
|---|---|
| Based on the standard | ISO 15407-2 |
| Assembly position | Any |
| Operating pressure | 3 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 203.5 g |
| Vertical stacking type of mounting | on manifold blockon individual sub-base |
| Pilot air port 14 | Manifold block, size 18 mm acc. to ISO 15407-2 |
