Electrical interface

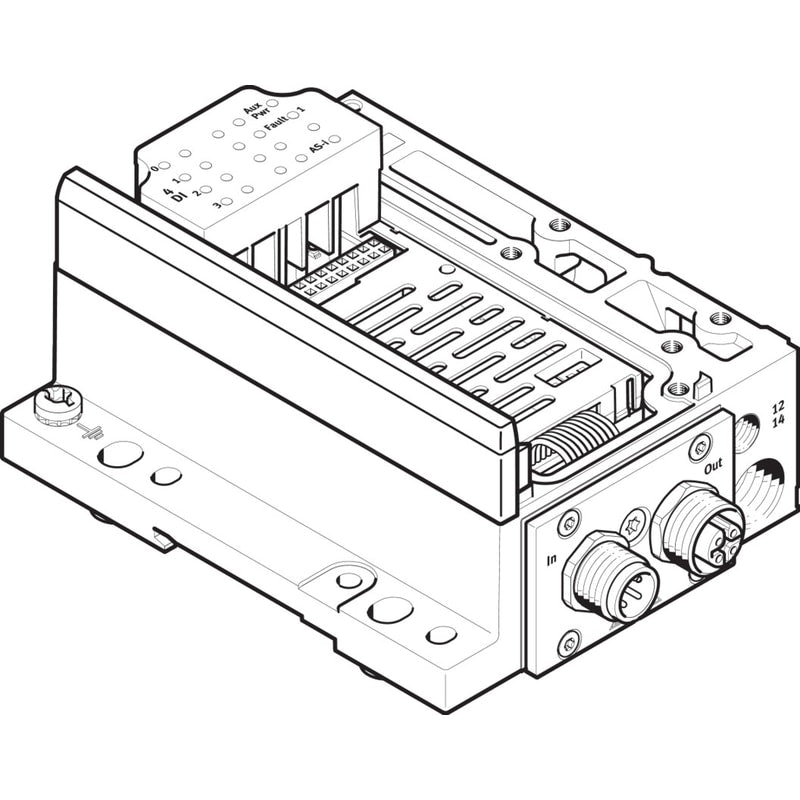

VMPA-ASI-EPL-GU-8E8A-CE
573186
GTIN 4052568219741
Vendor Festo
Regular price
$504.08
Unit price
VMPA-ASI-EPL-GU-8E8A-CE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA-ASI-EPL-GU-8E8A-CE
Regular price
$504.08
Unit price
VMPA-ASI-EPL-GU-8E8A-CE is backordered and will ship as soon as it is back in stock.
electrical interface VMPA-ASI-EPL-GU-8E8A-CE Dimensions W x L x H=85 mm x 122,9 mm x 55,1 mm, Fieldbus interface=(* Socket, M12 (ASI Out), * Plug connector, M12 (ASI In)), Device-specific diagnostics=(* ASI voltage, * ASI address, * Watchdog / EA-Status, * Additional power supply not applied or undervoltage), Max. number of valve positions=8, Input response delay=Typical: 3 ms at 24 V
| Dimensions W x L x H | 85 mm x 122,9 mm x 55,1 mm |
|---|---|
| Fieldbus interface | Socket, M12 (ASI Out)Plug connector, M12 (ASI In) |
| Device-specific diagnostics | ASI voltageASI addressWatchdog / EA-StatusAdditional power supply not applied or undervoltage |
| Max. number of valve positions | 8 |
| Input response delay | Typical: 3 ms at 24 V |
| Number of slaves per device | 2 |
| Operating voltage range for DC electronics/sensors | US+ / US- : <= AS-interface bus voltage - 2.5V |
| DC operating voltage, AS interface | 26.5 ... 31.6 V |
| DC operating voltage, load voltage | 21.6 ... 26.4 V |
| Note regarding load voltage | Via load voltage connection (24 V DC) |
| Logic level of digital inputs | ON: 11 - 30VOFF: -30 - 5V |
| Maximum number of inputs | 8 |
| Residual ripple, AS interface | <= 20 mVss |
