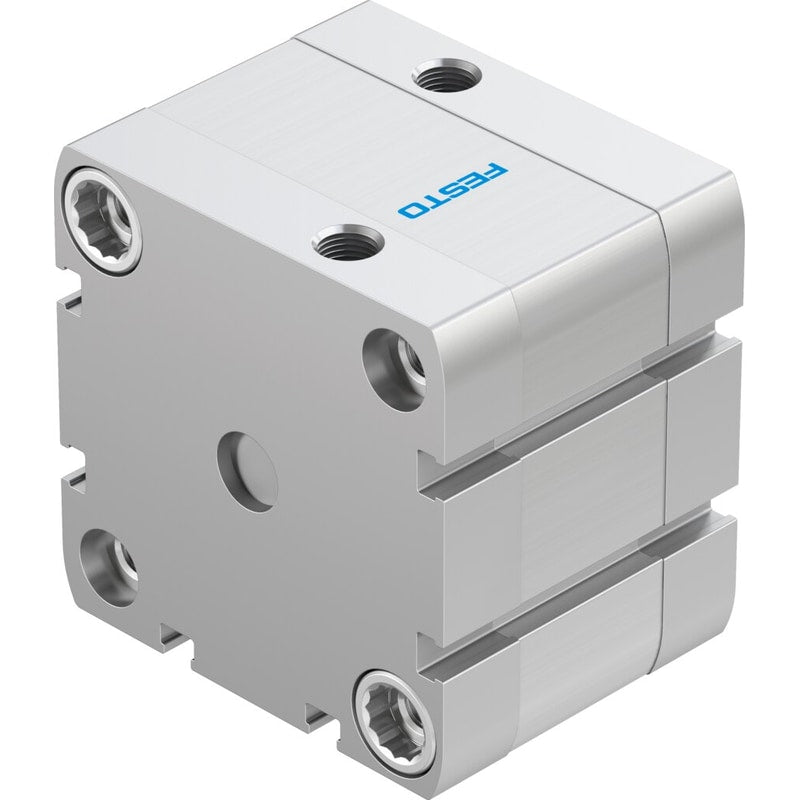

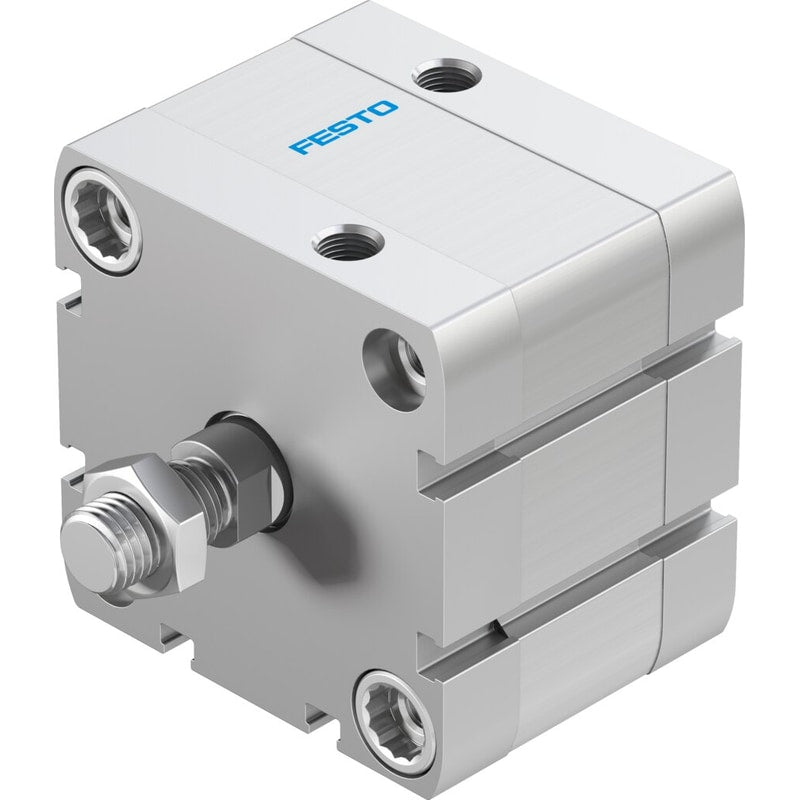

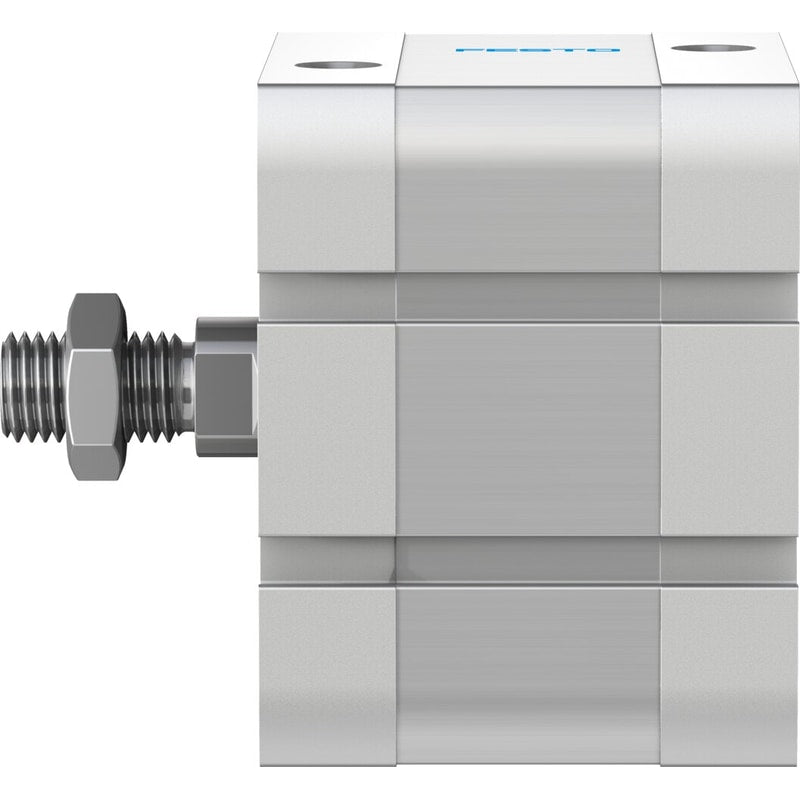

Compact cylinder
ADN-63-10-A-PPS-A
572709
GTIN 4052568219307
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 63 mm
- Theoretical force at 6 bar, advancing
- 1870 N
- Stroke
- 10 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
Regular price
$147.79
Unit price
ADN-63-10-A-PPS-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ADN-63-10-A-PPS-A
Regular price
$147.79
Unit price
ADN-63-10-A-PPS-A is backordered and will ship as soon as it is back in stock.
compact cylinder ADN-63-10-A-PPS-A with self-adjusting pneumatic end position cushioning Stroke=10 mm, Piston diameter=63 mm, Piston rod thread=M12x1,25, Cushioning=PPS: Self-adjusting pneumatic end-position cushioning, Assembly position=Any
| Stroke | 10 mm |
|---|---|
| Piston diameter | 63 mm |
| Piston rod thread | M12x1,25 |
| Cushioning | PPS: Self-adjusting pneumatic end-position cushioning |
| Assembly position | Any |
| Conforms to standard | ISO 21287 |
| Piston-rod end | Male thread |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
