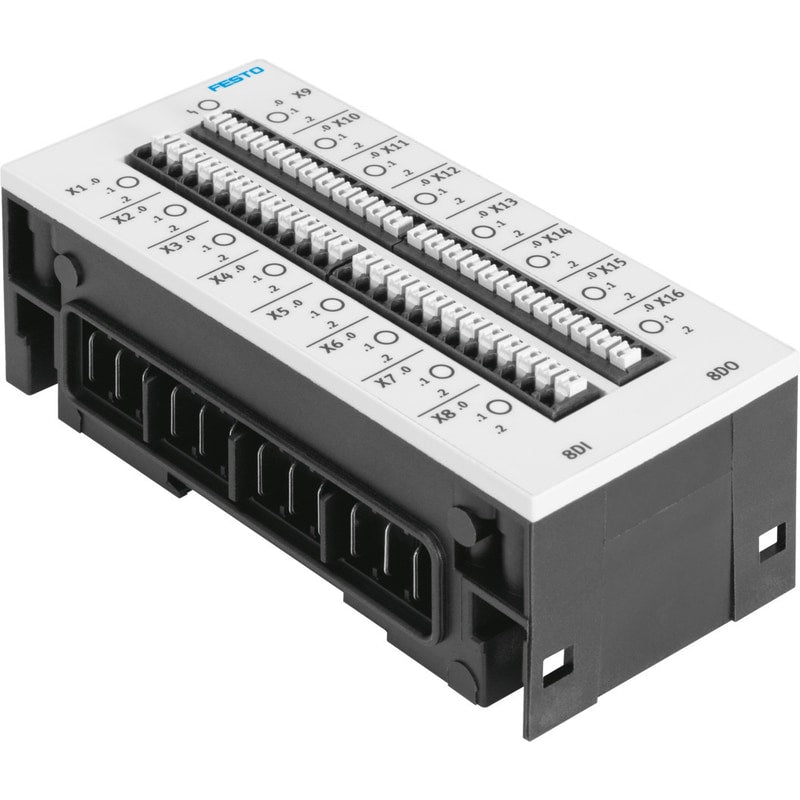

CPX-L-8DE-8DA-16-KL-3POL

input/output module CPX-L-8DE-8DA-16-KL-3POL Dimensions W x L x H=(* (including interlinking block), * 50 mm x 107 mm x 41 mm), No. of outputs=8, No. of inputs=8, Diagnosis=(* - Short circuit/overload per channel, * - Undervoltage of outputs), Parameters configuring=(* - Input debounce time, * Failsafe per channel, * Forces per channel, * Idle mode per channel, * - Signal extension time, * - Behaviour after short circuit, * Module monitoring)

Dimensions W x L x H	(including interlinking block)50 mm x 107 mm x 41 mm
No. of outputs	8
No. of inputs	8
Diagnosis	'- Short circuit/overload per channel- Undervoltage of outputs
Parameters configuring	'- Input debounce timeFailsafe per channelForces per channelIdle mode per channel- Signal extension time- Behaviour after short circuitModule monitoring
LED displays	'- 1 Group diagnosis- 16 Channel status
Input debounce time	3 ms (0.1 ms, 10 ms, 20 ms, parameterisable)
Protection (short circuit)	Internal electronic fuse protection per channel
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typically 15 mA
Max. power supply per channel	0.25 A (6 W lamp load)
Max. residual current outputs per module	0.0833333333333333
Max. residual current inputs per module	1.8 A
