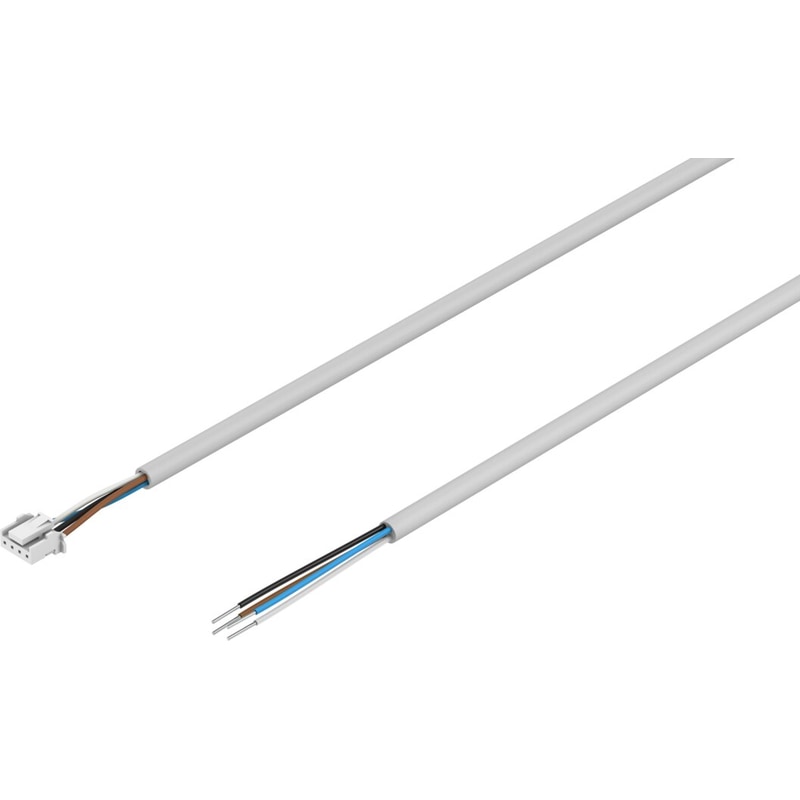

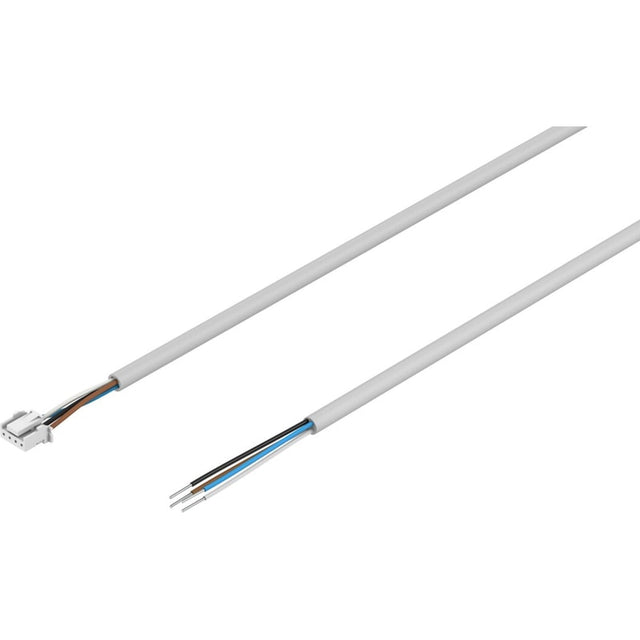

Connecting cable
NEBS-L1G4-K-2.5-LE4
572576
GTIN 4052568058890
Vendor Festo
- Cable length
- 2.5 m
Regular price
$13.94
Unit price
NEBS-L1G4-K-2.5-LE4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBS-L1G4-K-2.5-LE4
Regular price
$13.94
Unit price
NEBS-L1G4-K-2.5-LE4 is backordered and will ship as soon as it is back in stock.
connecting cable NEBS-L1G4-K-2.5-LE4 Electrical connection 1=Socket, rectangular design L1, 4-pin, Electrical connection 2=Open end, 4-wire, Operating voltage range DC=0 - 30 V, Acceptable current load at 40°C=1 A, Surge strength=0,8 kV
| Electrical connection 1 | Socket, rectangular design L1, 4-pin |
|---|---|
| Electrical connection 2 | Open end, 4-wire |
| Operating voltage range DC | 0 ... 30 V |
| Acceptable current load at 40°C | 0.0416666666666667 |
| Surge strength | 0.8 kV |
| Cable length | 2.5 m |
| Cable attribute | Standard |
| Test conditions of cable | Bending strength according to Festo standardTest conditions on request |
| Cable diameter | 4.1 mm |
| Cable structure | 4x0,14 |
| Nominal conductor cross-section | 0.14 mm2 |
| Colour code, core insulation | bluebrownBlackwhite |
| Protection class | IP40 |
