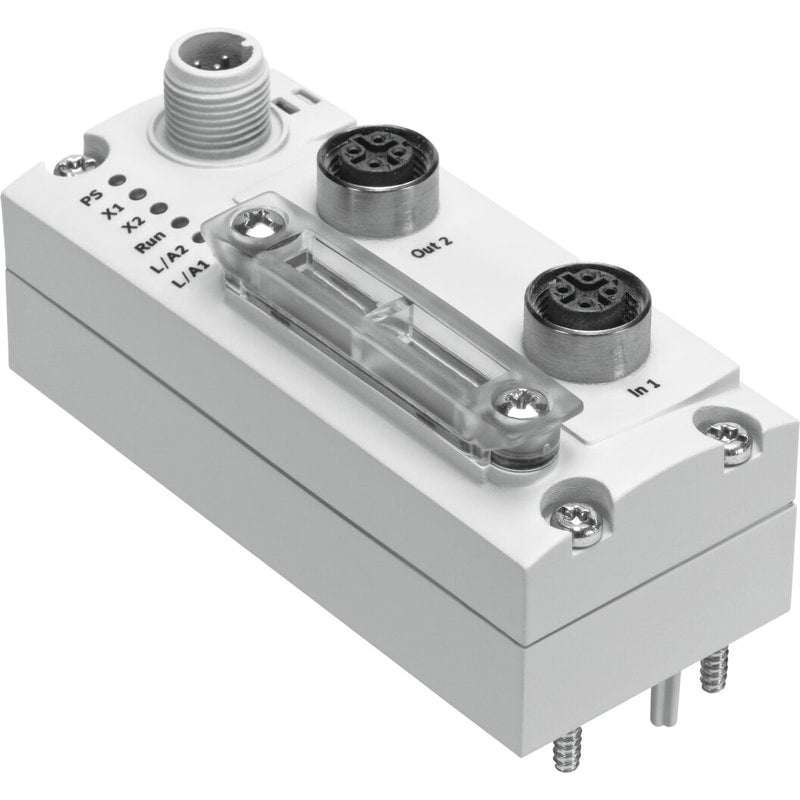

Bus node
CTEU-EC
572556
GTIN 4052568218669
Vendor Festo
- Protocol
- EtherCAT
- DC operating voltage range
- 18 V - 30 V
- Intrinsic current consumption at nominal operating voltage
- Typ. 60 mA
- Fieldbus interface, protocol
- EtherCAT
- Degree of protection
- IP65 - IP67
Regular price
$575.38
Unit price
CTEU-EC is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CTEU-EC
Regular price
$575.38
Unit price
CTEU-EC is backordered and will ship as soon as it is back in stock.
bus node CTEU-EC Dimensions W x L x H=40 mm x 91 mm x 50 mm, Fieldbus interface=2x socket, M12x1, 4-pin, D-coded, Diagnosis=(* - Communication error, * - System diagnostics, * - Undervoltage), Configuration support=XML file, Additional functions=(* - Acyclic data access via SDO, * Object diagnostics, * Emergency Message, * Modular Device Profile (MDP))
| Dimensions W x L x H | 40 mm x 91 mm x 50 mm |
|---|---|
| Grid dimension | 40 mm |
| Mounting type | auf Elektrik-Anschlussplatteauf Elektrik-Anschaltung |
| Product weight | 90 g |
| Protocol | EtherCAT |
| Fieldbus interface | Ethernet |
| Fieldbus interface, protocol | EtherCAT |
| Fieldbus interface, type of connection | 2x socket |
| Fieldbus interface, connection technology | M12x1, D-coded in accordance with EN 61076-2-101 |
| Fieldbus interface, number of pins/wires | 4 |
| Fieldbus interface, electrical isolation | Yes |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Internal cycle time | 1 ms per 1 byte of user data |
