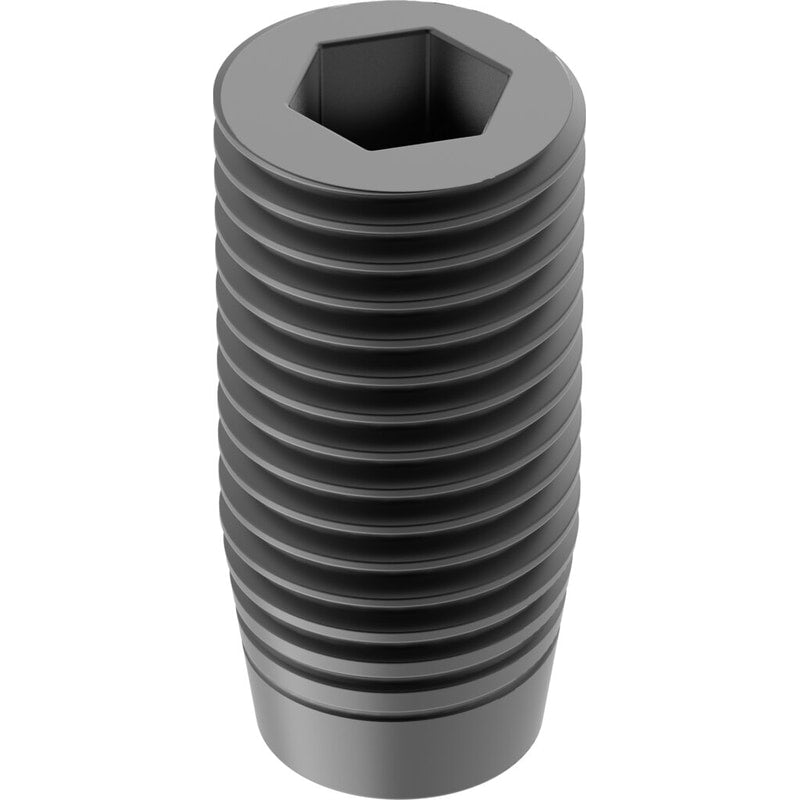

Fixed flow restrictor
VMPA1-FT-NW1.2-10
572548
GTIN 4052568102494
Vendor Festo
Regular price
$74.34
Unit price
VMPA1-FT-NW1.2-10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA1-FT-NW1.2-10
Regular price
$74.34
Unit price
VMPA1-FT-NW1.2-10 is backordered and will ship as soon as it is back in stock.
Fixed restrictor VMPA1-FT-NW1.2-10 Valve function=Throttle function, Pneumatic connection, port 1=Sub-base, Mounting type=Threaded, Standard nominal flow rate in flow control direction=52 - 58 l/min, Operating pressure=-0,9 - 10 bar
| Valve function | Throttle function |
|---|---|
| Pneumatic connection, port 1 | Sub-base |
| Mounting type | Threaded |
| Standard nominal flow rate in flow control direction | 52 ... 58 l/min |
| Operating pressure | '-0.9 ... 10 bar |
| Ambient temperature | '-5 ... 60 °C |
| Nominal size | 1.2 mm |
| Assembly position | Any |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Storage temperature | '-20 ... 40 °C |
| Medium temperature | '-5 ... 60 °C |
| Product weight | 0.06 g |
