Fixed flow restrictor-SET (Pack size: 2)
VMPA1-FT-NW0.3-1.7
572543
GTIN 4052568102449
Vendor Festo
Regular price
$104.04
Unit price
VMPA1-FT-NW0.3-1.7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA1-FT-NW0.3-1.7
Regular price
$104.04
Unit price
VMPA1-FT-NW0.3-1.7 is backordered and will ship as soon as it is back in stock.

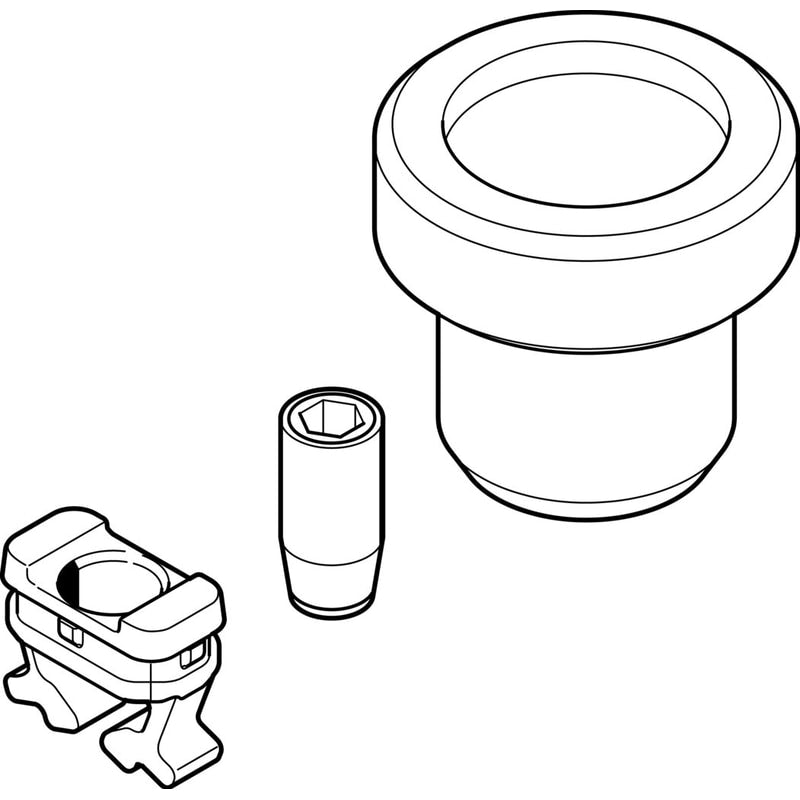

Fixed restrictor set VMPA1-FT-NW0.3-1.7 Valve function=Throttle function, Pneumatic connection, port 1=Sub-base, Standard nominal flow rate in flow control direction=3,5 - 115 l/min, Operating pressure=-0,9 - 10 bar, Ambient temperature=-5 - 60 °C
| Valve function | Throttle function |
|---|---|
| Pneumatic connection, port 1 | Sub-base |
| Standard nominal flow rate in flow control direction | 3.5 ... 115 l/min |
| Operating pressure | '-0.9 ... 10 bar |
| Ambient temperature | '-5 ... 60 °C |
| Nominal size | 0.3 ... 1.7 mm |
| Assembly position | Any |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Storage temperature | '-20 ... 40 °C |
| Medium temperature | '-5 ... 60 °C |
| Materials note | Conforms to RoHS |
| Material bracket | POM |
