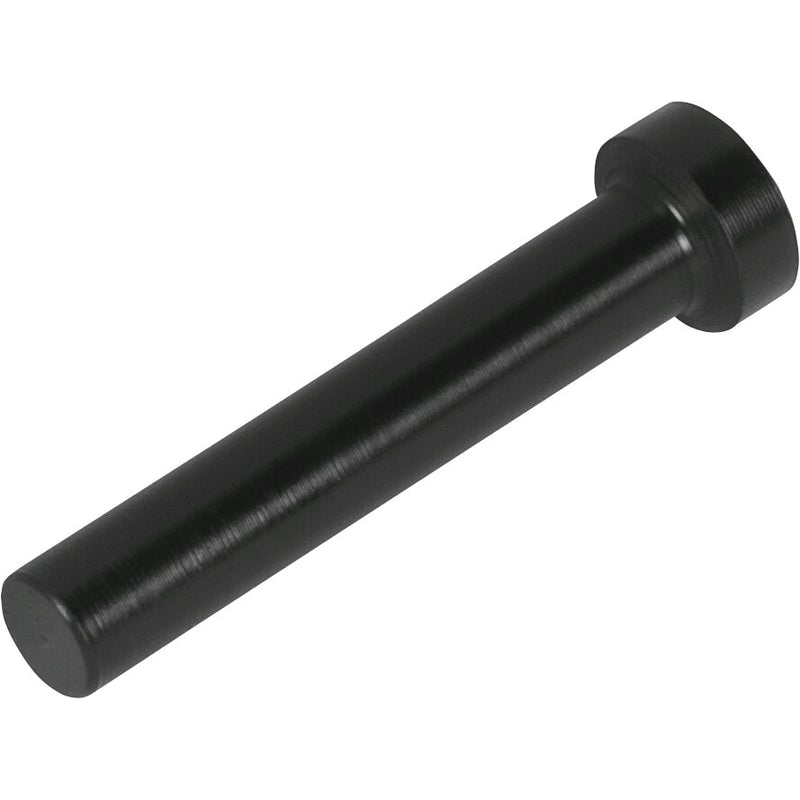

Blanking plug
QBMC-1/8H-U
572281
GTIN 4052568374570
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 1/8"
- Ambient temperature
- 0 °C - 60 °C
Regular price
$1.32
Unit price
QBMC-1/8H-U Blanking plug is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QBMC-1/8H-U
Regular price
$1.32
Unit price
QBMC-1/8H-U Blanking plug is backordered and will ship as soon as it is back in stock.
blanking plug QBMC-1/8H-U Size=Mini, Assembly position=Any, Operating pressure complete temperature range=-13,8 - 145 Psi, Temperature dependent operating pressure=-13,8 - 145 Psi, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Fitting Type | Plug-in Plug |
|---|---|
| Size | Mini |
| Assembly position | Any |
| Operating pressure complete temperature range | '-13.8 ... 145 Psi |
| Temperature dependent operating pressure | '-13.8 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Product weight | 0.035 oz |
| connection 1 | Push-in sleeve QS-1/8" |
| Colour of release ring | Grey |
| Materials note | Contains PWIS substancesConforms to RoHS |
