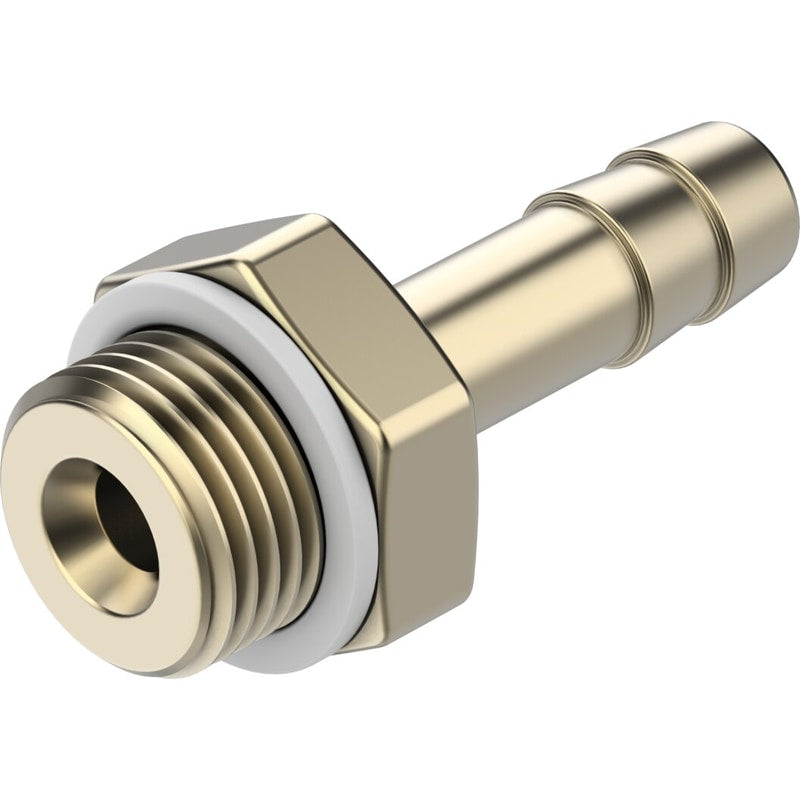

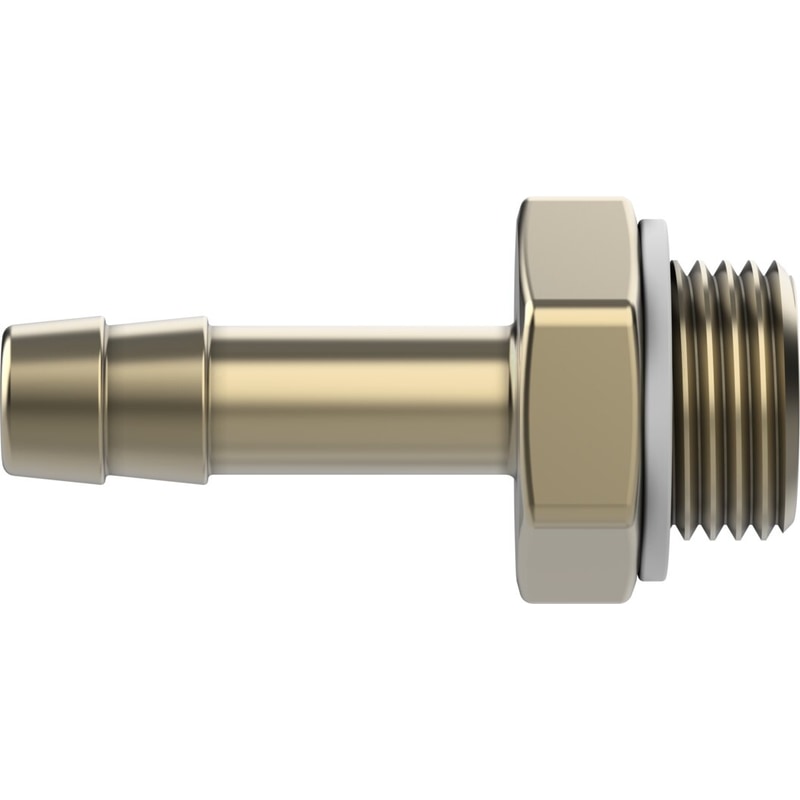

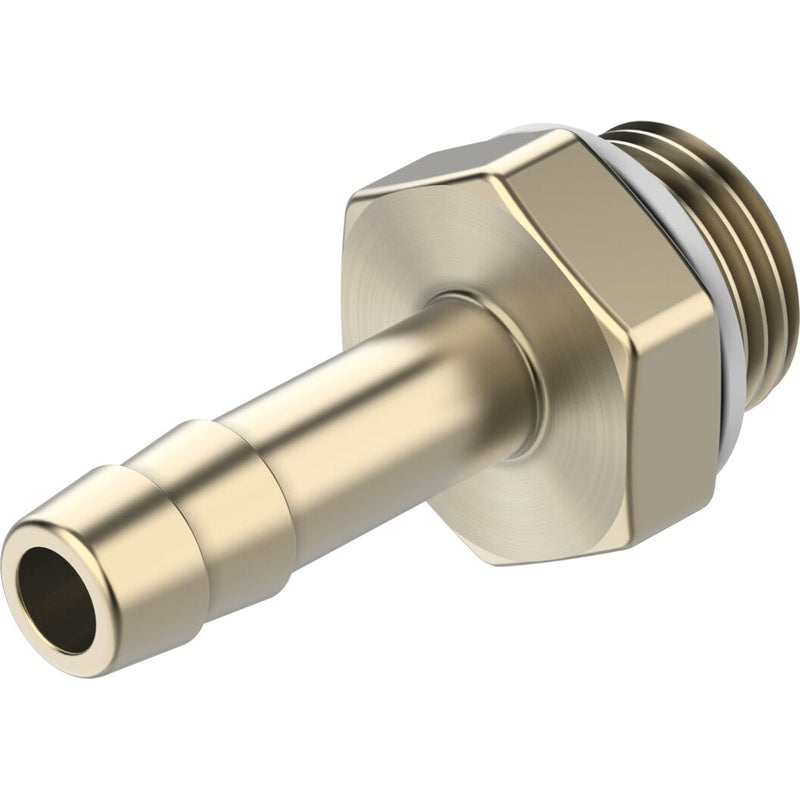

Barb tubing fitting
N-1-P-19
572260
GTIN 4052568058852
Vendor Festo
- Pneumatic connection 1
- External thread R1
- Pneumatic connection 2
- For tubing I.D. 19 mm
- Nominal width
- 16.5 mm
Regular price
$38.95
Unit price
N-1-P-19 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
N-1-P-19
Regular price
$38.95
Unit price
N-1-P-19 is backordered and will ship as soon as it is back in stock.
barbed hose fitting N-1-P-19 Nominal size=16,5 mm, Operating pressure complete temperature range=-0,95 - 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Corrosion resistance classification CRC=2 - Moderate corrosion stress
| Fitting Type | Barbed Straight |
|---|---|
| Nominal size | 16.5 mm |
| Operating pressure complete temperature range | '-0.95 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| connection 1 | Male thread G1 |
| connection 2 | For tubing internal diameter 19 mm |
| Materials note | Conforms to RoHS |
