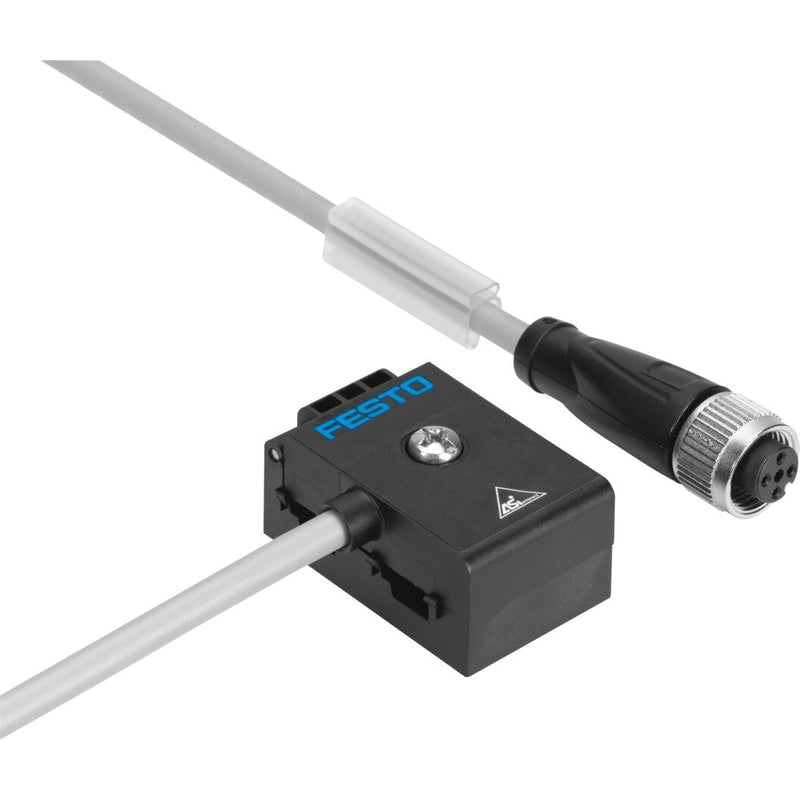

Cable socket
NEFU-X24F-1-M12G4
572227
GTIN 4052568102388
Vendor Festo
Regular price
$91.74
Unit price
NEFU-X24F-1-M12G4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEFU-X24F-1-M12G4
Regular price
$91.74
Unit price
NEFU-X24F-1-M12G4 is backordered and will ship as soon as it is back in stock.
| Width | 36 mm |
|---|---|
| Height | 40 mm |
| Length | 40 mm |
| Type code | NEFU |
| Type of mounting | With through-hole |
| Product weight | 60 g |
| Fieldbus interface | Socket, M12x1, 4-pin, A-coded |
| AS-Interface DC operating voltage range | 26.5 V ... 31.6 V |
| Nominal operating voltage DC AS-Interface | 26.5 V |
| DC load voltage operating voltage range | 20.4 V ... 26.4 V |
| Nominal operating voltage DC load voltage | 24 V |
| Degree of protection | In mounted stateas per IEC 60529IP65 |
| Ambient temperature | -25 °C ... 75 °C |
| Storage temperature | -25 °C ... 85 °C |
| Note on materials | RoHS-compliant |
| Housing material | PA |
| Cover material | PA |
