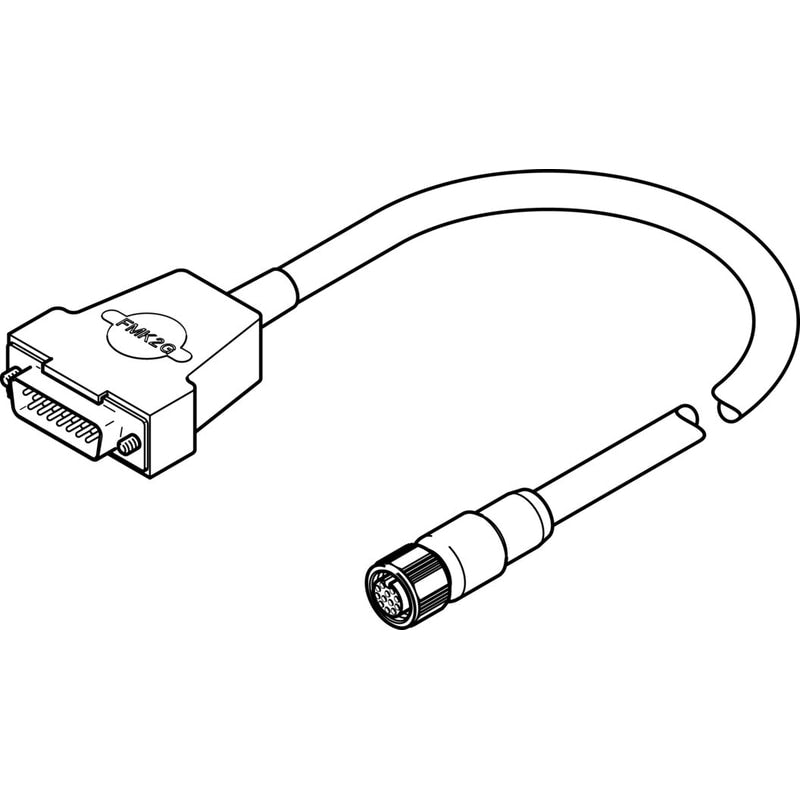

Encoder cable
NEBM-M12G12-RS-15-N-S1G15
571915
GTIN 4052568217983
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- Sub-D
- Cable length
- 15 m
Regular price
$453.24
Unit price
NEBM-M12G12-RS-15-N-S1G15 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBM-M12G12-RS-15-N-S1G15
Regular price
$453.24
Unit price
NEBM-M12G12-RS-15-N-S1G15 is backordered and will ship as soon as it is back in stock.
| Type code | NEBM |
|---|---|
| Conforms to standard | DIN 47100EN 61984 |
| Cable designation | Without label holder |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 12 |
| Electrical connection 1, occupied pins/wires | 11 |
| Electrical connection 1, type of mounting | Screw-type lock with AF 14 |
| Electrical connection for input 1, connection pattern | 995668 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | Sub-D |
| Electrical connection 2, number of pins/wires | 15 |
| Electrical connection 2, occupied pins/wires | 11 |
| Electrical connection 2, type of mounting | Screw-type lock with hexagon, AF 18 |
| Electrical connection 2, connection pattern | 995641 |
| DC operating voltage range | 0 V ... 30 V |
| Nominal operating voltage DC | 24 V |
| Nominal operating voltage AC | 24 V |
| Current rating at 40°C | 0.0416666666666667 |
| Cable length | 15 m |
| Cable characteristic | Suitable for robot applications |
| Bending radius, flexible cable installation | ≥ 70 mm |
| Cable diameter | 7 mm |
| Cable design | 12 x 0.14 mm²Shielded |
| Nominal conductor cross section | 0.14 mm² |
| Degree of protection | IP67 |
| Note on degree of protection | IP50 for Sub-D plugIn mounted state |
| Ambient temperature | -25 °C ... 80 °C |
| Ambient temperature with flexible cable installation | 0 °C ... 40 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Black |
| Housing material | TPE-U(PUR) |
| Material of union nut | Die-cast zinc, nickel-plated |
| Seals material | NBR |
| Insulating sheath material | TPE-E |
