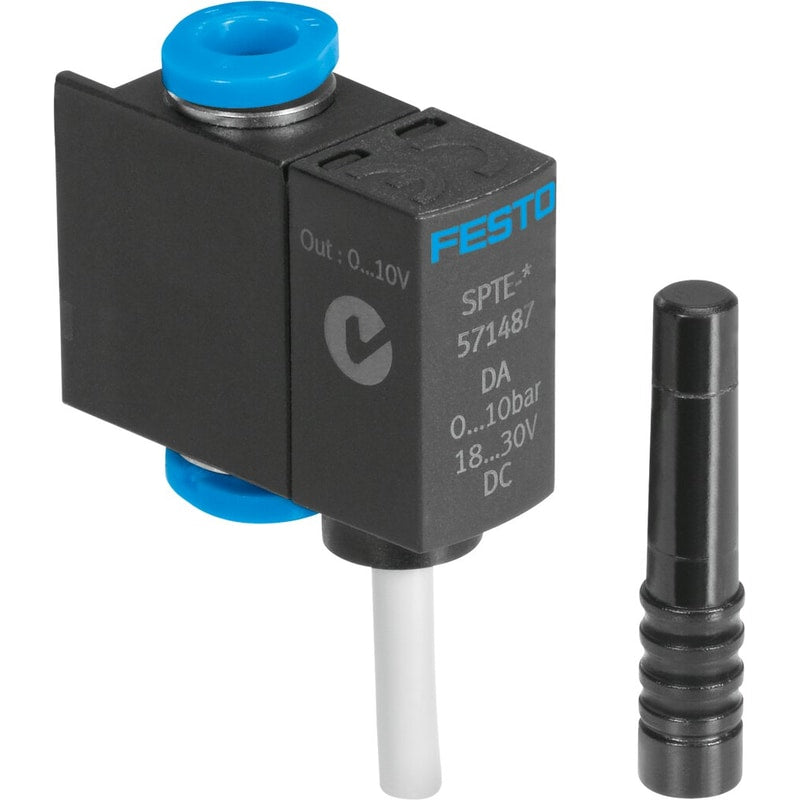

Pressure transmitter
SPTE-P10R-Q4-V-2.5K
571487
GTIN 4052568101411
Vendor Festo
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- 10 bar
- Pneumatic connection
- QS-4
- Electrical connection
- Cable - Open end
Regular price
$86.32
Unit price
SPTE-P10R-Q4-V-2.5K is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPTE-P10R-Q4-V-2.5K
Regular price
$86.32
Unit price
SPTE-P10R-Q4-V-2.5K is backordered and will ship as soon as it is back in stock.
pressure transmitter SPTE-P10R-Q4-V-2.5K Authorisation=(* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Piezoresistive pressure sensor
| Authorisation | RCM Markc UL us - Recognized (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Conforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor |
| Pressure measuring range, initial value | 0 bar |
| Pressure measuring range, final value | 10 bar |
| Overload range | 15 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Medium temperature | 0 ... 50 °C |
| Ambient temperature | 0 ... 50 °C |
| Accuracy, FS | 3 %FS |
