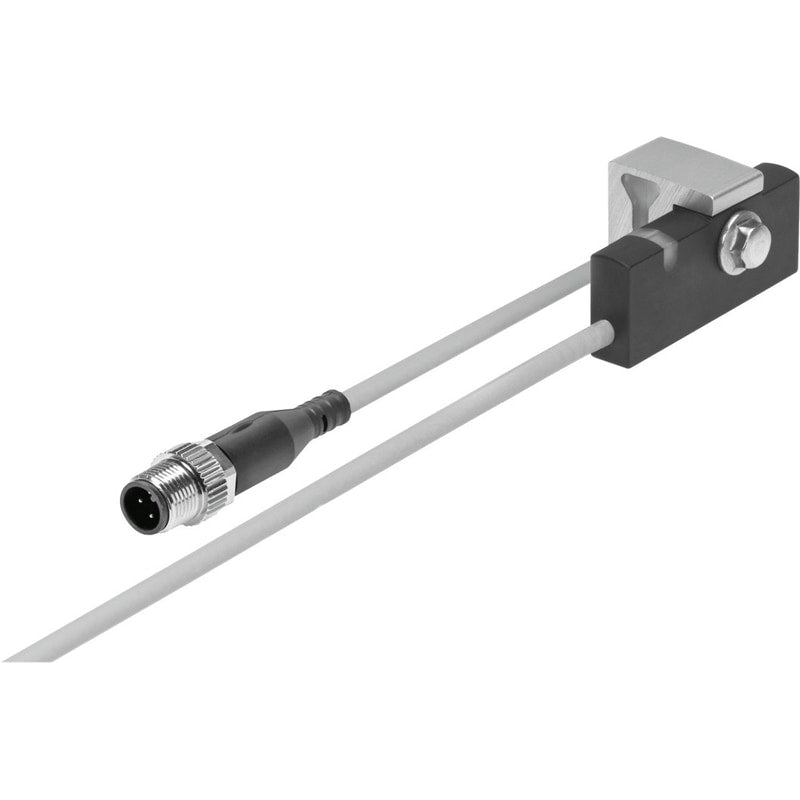

Proximity sensor
SMT-C1-PS-24V-K-0,3-M12
571341
GTIN 4052568101213
Vendor Festo
- DC operating voltage range
- 10 V - 30 V
- Switching element function
- N/O contact
- Switching output
- PNP
Regular price
$105.26
Unit price
SMT-C1-PS-24V-K-0,3-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMT-C1-PS-24V-K-0,3-M12
Regular price
$105.26
Unit price
SMT-C1-PS-24V-K-0,3-M12 is backordered and will ship as soon as it is back in stock.
proximity sensor SMT-C1-PS-24V-K-0,3-M12 Design=Block design, Based on the standard=EN 60947-5-2, Authorisation=RCM Mark, CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Halogen-free)
| Design | Block design |
|---|---|
| Based on the standard | EN 60947-5-2 |
| Authorisation | RCM Mark |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFEHalogen-free |
| Measured variable | Position |
| Measuring principle | Magnetic inductive |
| Ambient temperature | '-20 ... 70 °C |
| Switch output | PNP |
| Switching element function | Normally open contact |
| Switch-on time | <= 0.5 ms |
| Switch-off time | <= 0.5 ms |
| Max. output current | 200 mA |
