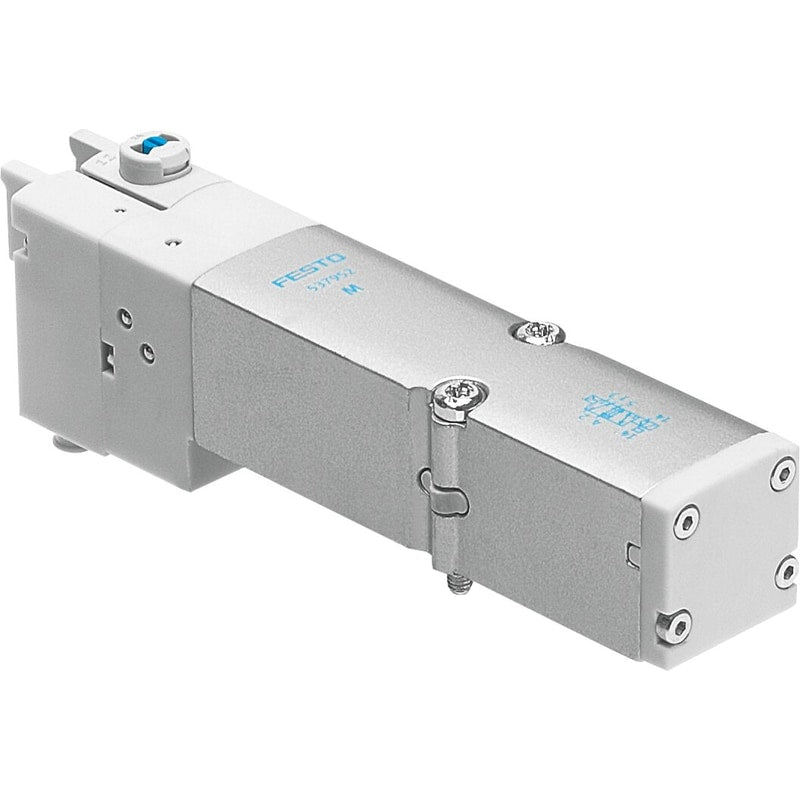

Air solenoid valve
VMPA2-M1H-MS-PI
571333
GTIN 4052568217853
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 670 l/min - 840 l/min
- Actuation type
- Electrical
Regular price
$141.83
Unit price
VMPA2-M1H-MS-PI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA2-M1H-MS-PI
Regular price
$141.83
Unit price
VMPA2-M1H-MS-PI is backordered and will ship as soon as it is back in stock.
solenoid valve VMPA2-M1H-MS-PI Valve function=5/2 monostable, Type of actuation=electrical, Valve size=20 mm, Standard nominal flow rate=840 l/min, Operating pressure=-0,9 - 8 bar
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Valve size | 20 mm |
| Standard nominal flow rate | 840 l/min |
| Operating pressure | '-0.9 ... 8 bar |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Protection class | IP65to IEC 60529in assembled condition |
| Authorisation | c UL us - Recognized (OL) |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushing |
| Type of piloting | Piloted |
