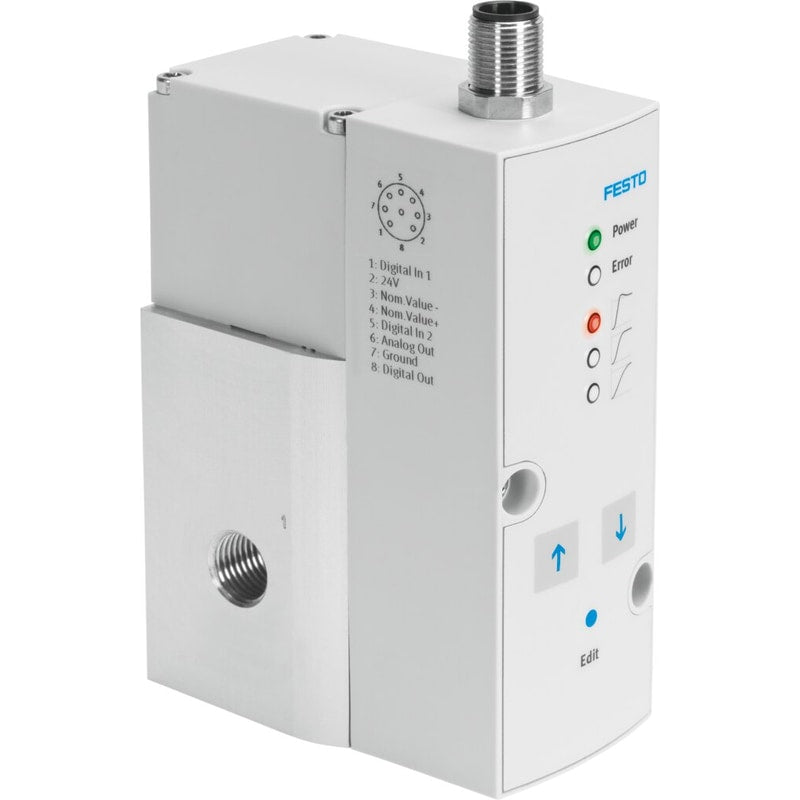

Proportional pressure control valve
VPPM-8L-L-1-G14-0L10H-V1N-S1
571291
GTIN 4052568217723
Vendor Festo
- Valve function
- 3-way proportional pressure control valve
- Pneumatic connection 1
- G1/4
- Pressure regulation range
- 0.1 bar - 10 bar
- Normal nominal flow rate (normalized to DIN 1343)
- 2750 l/min
Regular price
$1,312.35
Unit price
VPPM-8L-L-1-G14-0L10H-V1N-S1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPPM-8L-L-1-G14-0L10H-V1N-S1
Regular price
$1,312.35
Unit price
VPPM-8L-L-1-G14-0L10H-V1N-S1 is backordered and will ship as soon as it is back in stock.
The new dimension in the field of proportional pressure control valves. The right parameters for every application – simply select the matching control characteristics from 3 presets at the push of a button. Reliable control – thanks to a two-stage circuit with multi-sensor control.
| KC characters | KC EMC |
|---|---|
| Nominal width pressurization | 6 mm |
| Exhaust nominal width | 4.5 mm |
| Type code | VPPM |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Pilot-controlled diaphragm regulator |
| Short-circuit protection | For all electrical connections |
| Safety instructions | VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
| Symbol | 00995303 |
| Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Valve function | 3-way proportional pressure control valve |
| Display type | Back-lit LCD |
| Pressure regulation range | 0.1 bar ... 10 bar |
| Inlet pressure 1 | 0 bar ... 11 bar |
| Max. pressure hysteresis | 0.05 bar |
| Standard nominal flow rate | 1400 l/min |
| DC operating voltage range | 21.6 V ... 26.4 V |
| Max. current consumption | 300 mA |
| Duty cycle | 100% |
| Max. electrical power consumption | 7 W |
| Residual ripple | 10 % |
| Switching output | NPN |
| Analog output signal range | 0 - 10 V |
| Analog input signal range | 0 - 10 V |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 10 °C ... 50 °C |
