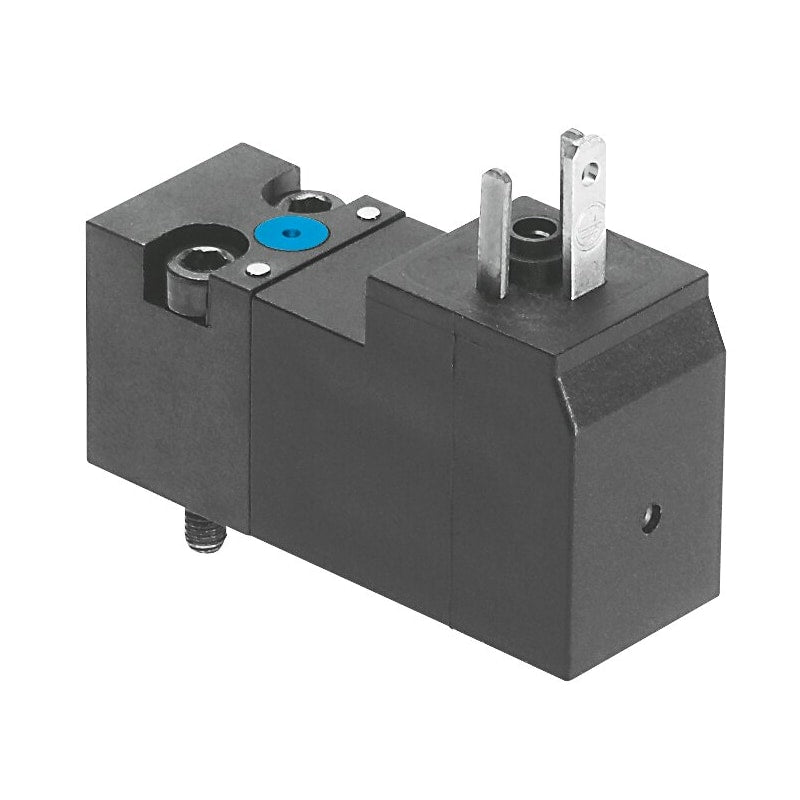

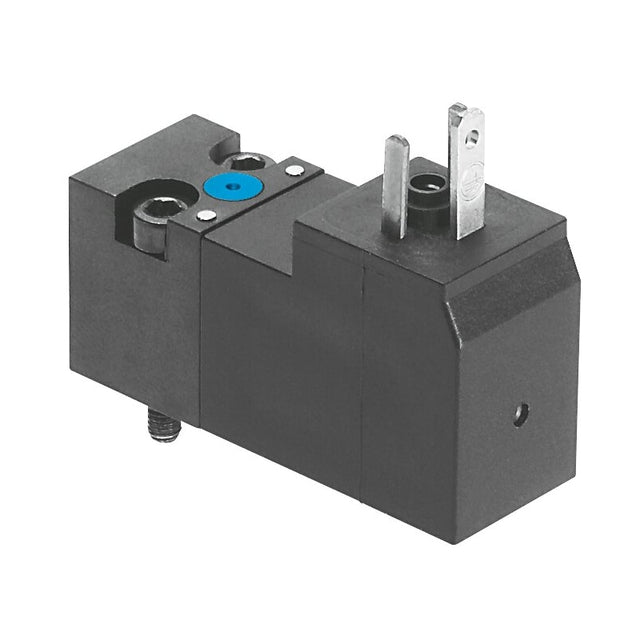

Air solenoid valve
VSCS-B-M32-MD-WA-1C1
571061
GTIN 4052568101138
Vendor Festo
- Valve function
- 3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 18 l/min
- Pneumatic connection 1
- Sub-base
- Actuation type
- Electrical
Regular price
$45.13
Unit price
VSCS-B-M32-MD-WA-1C1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSCS-B-M32-MD-WA-1C1
Regular price
$45.13
Unit price
VSCS-B-M32-MD-WA-1C1 is backordered and will ship as soon as it is back in stock.
solenoid valve VSCS-B-M32-MD-WA-1C1 Valve function=3/2 closed, monostable, Type of actuation=electrical, Width=15 mm, Standard nominal flow rate=18 l/min, Operating pressure=0 - 10 bar
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 15 mm |
| Standard nominal flow rate | 18 l/min |
| Operating pressure | 0 ... 10 bar |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Authorisation | c UL us - Recognized (OL) |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | ISO 15218 |
| Manual override | detentingPushing |
| Type of piloting | direct |
