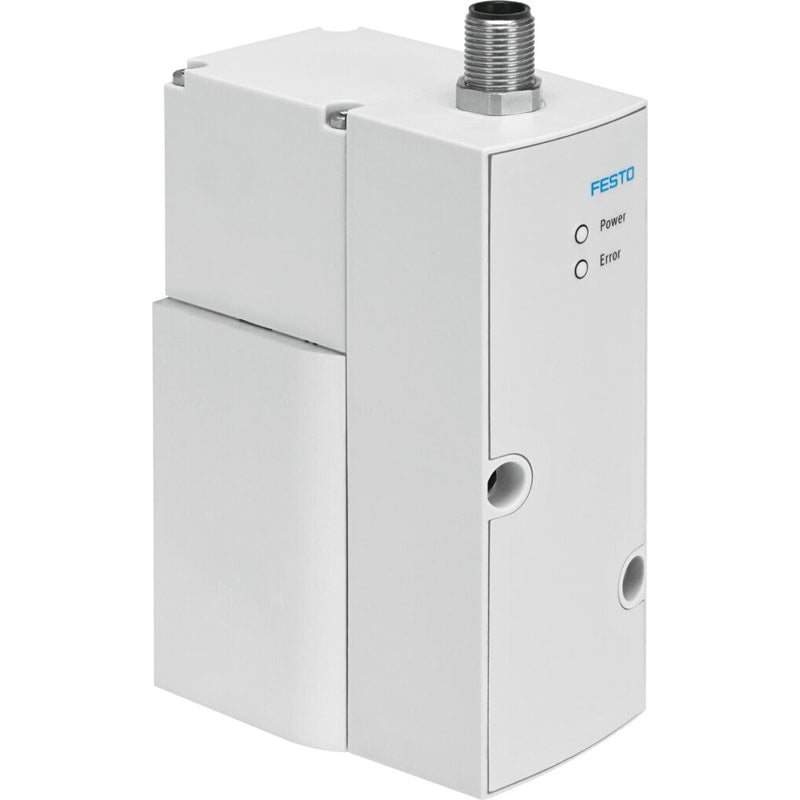

Proportional pressure control valve
VPPX-8F-L-1-F-0L10H-S1
570970
GTIN 4052568217600
Vendor Festo
- Valve function
- 3-way proportional pressure control valve
- Pneumatic connection 1
- Sub-base
- Pressure regulation range
- 0.1 bar - 10 bar
- Normal nominal flow rate (normalized to DIN 1343)
- 1650 l/min
Regular price
$1,567.24
Unit price
VPPX-8F-L-1-F-0L10H-S1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPPX-8F-L-1-F-0L10H-S1
Regular price
$1,567.24
Unit price
VPPX-8F-L-1-F-0L10H-S1 is backordered and will ship as soon as it is back in stock.
| KC characters | KC-EMV |
|---|---|
| Nominal width pressurization | 3 mm |
| Exhaust nominal width | 2 mm |
| Type code | MPPES |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Directly controlled piston regulator |
| Short-circuit protection | For all electrical connections |
| Safety instructions | MPPES safety position: if the power supply cable breaks, the outlet pressure will drop to 0 bar. |
| Symbol | 00995305 |
| Reverse polarity protection | for all electrical connections |
| Valve function | 3-way proportional pressure control valve closed |
| Operating pressure | ≤ 12 bar |
| Pressure regulation range | 0 bar ... 10 bar |
| Inlet pressure 1 | 11 bar ... 12 bar |
| Max. pressure hysteresis | 0.01 bar |
| Switching time off | 410 ms |
| On switching time | 220 ms |
| DC operating voltage range | 18 V ... 30 V |
| Residual ripple | 10 % |
| Setpoint/actual values | Voltage type 0 - 10 V |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 0 °C ... 60 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 915 g |
| Electrical connection | Round design8-pinM16x0.75as per DIN 45326Plug |
| Type of mounting | With through-hole |
