Plug

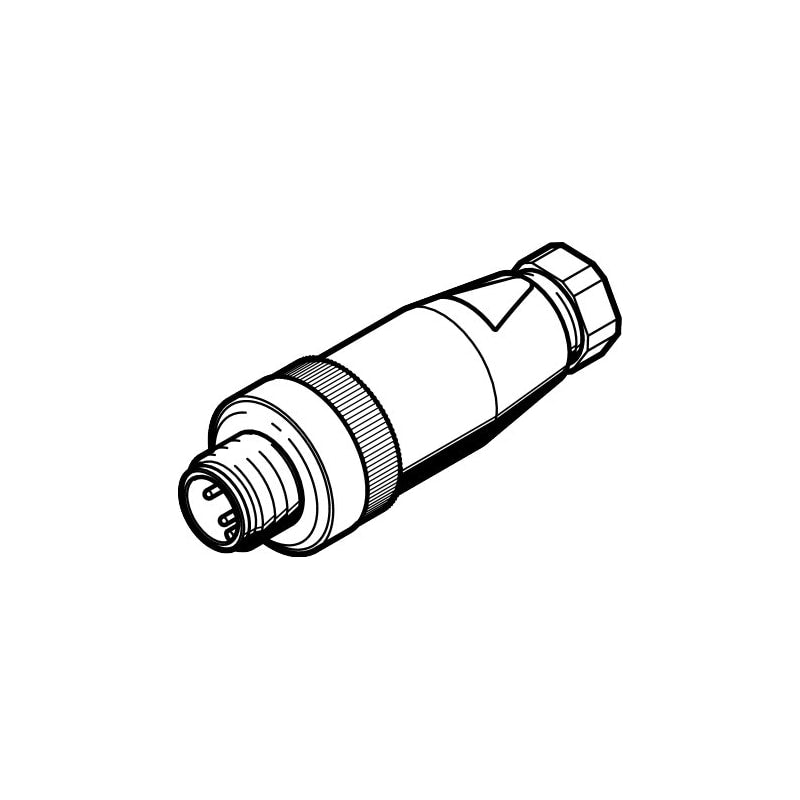

NECU-S-M12G4-P1-Q6-IS
570955
GTIN 4052568058692
Vendor Festo
- Connection cross section
- 0.14 mm² - 0.5 mm²
- Degree of protection
- IP65 - IP67
Regular price
$16.17
Unit price
NECU-S-M12G4-P1-Q6-IS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NECU-S-M12G4-P1-Q6-IS
Regular price
$16.17
Unit price
NECU-S-M12G4-P1-Q6-IS is backordered and will ship as soon as it is back in stock.
| Type code | NECU |
|---|---|
| Based on norm | EN 61076-2-101EN 61984 |
| Explosion prevention and protection | Zone 21 (ATEX)Observe the information on the certificateZone 1 (ATEX)Zone 2 (ATEX)Zone 22 (ATEX) |
| Contact durability | 50 |
| Type of mounting | With threaded sleeve |
| Product weight | 18 g |
| Electrical connection | Form AStraight plug/screw terminal4-pinM12x1 |
| DC operating voltage range | 0 V ... 30 V |
| Current rating at 40°C | 0.166666666666667 |
| Surge resistance | 2.5 kV |
| Approved cable diameter | 2.5 mm ... 2.9 mm |
| Connection cross section | 0.14 mm² ... 0.5 mm² |
| Degree of protection | IP67IP65 |
| Ambient temperature | -25 °C ... 85 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Housing material | PA |
| Material of union nut | PA |
| Material of pin contacts | BrassWhite bronze, coated |
| Mounting position | Any |
| Cable fitting | Pg7 |
