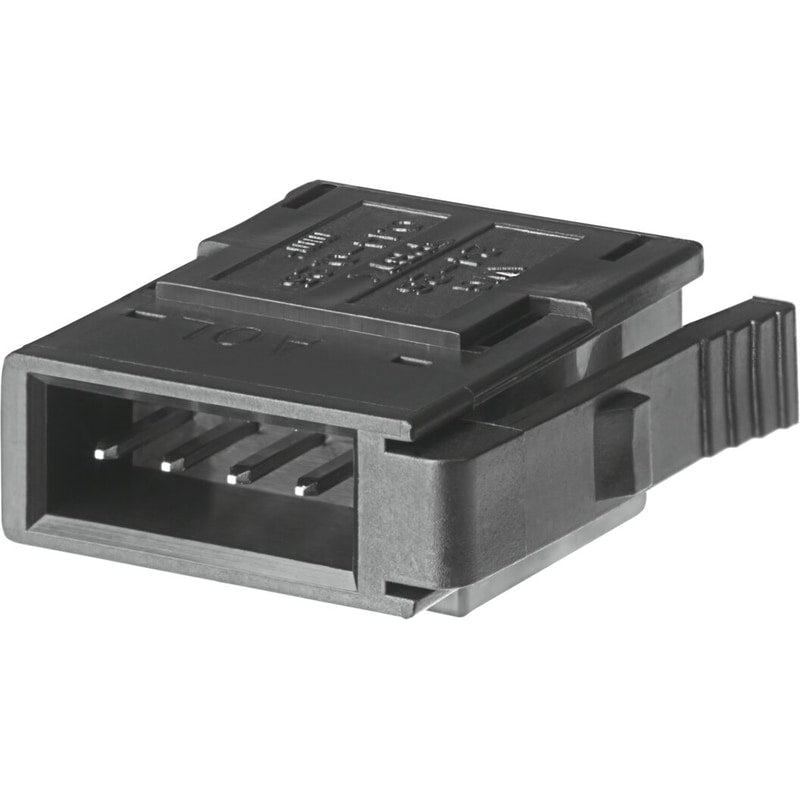

Plug
NECU-S-ECG4-HX-Q3
570922
GTIN 4052568058661
Vendor Festo
- Electrical connection
- Straight plug/insulation displacement connector - Rectangular design
- Connection cross section
- 0.14 mm²
- Degree of protection
- IP40
Regular price
$11.29
Unit price
NECU-S-ECG4-HX-Q3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NECU-S-ECG4-HX-Q3
Regular price
$11.29
Unit price
NECU-S-ECG4-HX-Q3 is backordered and will ship as soon as it is back in stock.
| Type code | NECU |
|---|---|
| Certification | c UL us - Recognized (OL) |
| Contact durability | 1 |
| Type of mounting | Engaging |
| Electrical connection | Rectangular designStraight plug/insulation displacement connector4-pin |
| DC operating voltage range | 0 V ... 30 V |
| Current rating at 40°C | 0.125 |
| Surge resistance | 0.8 kV |
| Individual wire diameter | ≥ 0.07 mm |
| Connection cross section | 0.14 mm² |
| Degree of protection | IP40 |
| Ambient temperature | -20 °C ... 60 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 2 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PBTPC |
| Material of pin contacts | Gold-plated |
| Permissible insulating sheath | PPPVCTPE-E |
| Wire diameter | 0.8 mm ... 1 mm |
