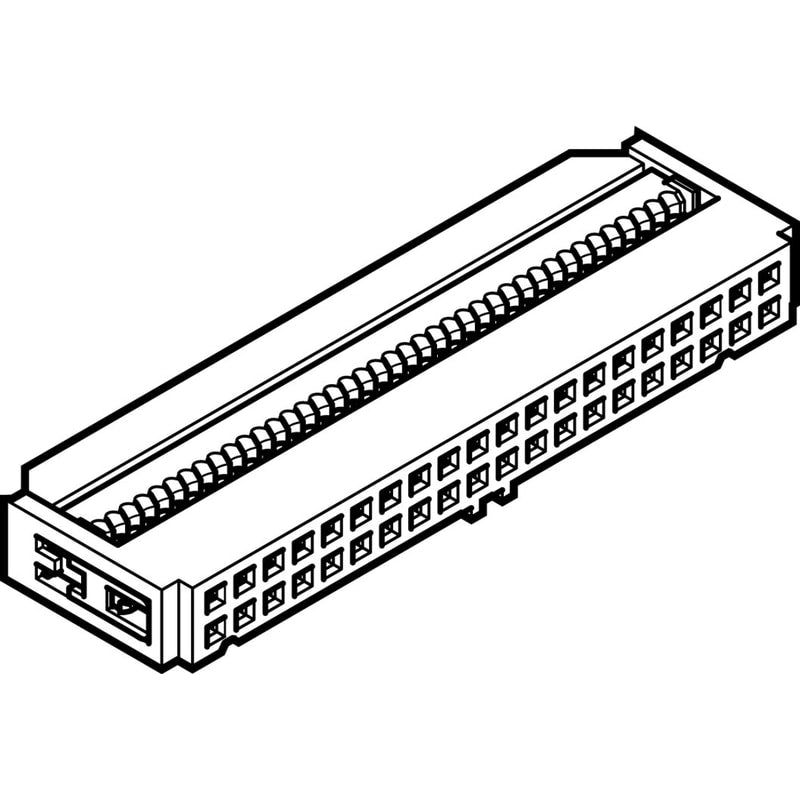

Plug connector
NECU-FCG40-K
570895
GTIN 4052568058654
Vendor Festo
- Degree of protection
- IP40
Regular price
$13.96
Unit price
NECU-FCG40-K is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NECU-FCG40-K
Regular price
$13.96
Unit price
NECU-FCG40-K is backordered and will ship as soon as it is back in stock.
| Cable outlet | Straight |
|---|---|
| Nominal conductor cross section | AWG26 |
| Type code | NECU |
| Conforms to standard | EN 60603-13 |
| Contact durability | 50 |
| Product weight | 5 g |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connection technology | Connection diagram FC |
| Electrical connection 1, number of pins/wires | 40 |
| Electrical connection 1, type of mounting | Snap-locking |
| Electrical connection 2, connection technology | Insulation displacement connector |
| DC operating voltage range | 0 V ... 30 V |
| Current rating at 40°C | 1.5 A |
| Nominal conductor cross section | 0.13 mm² |
| Degree of protection | IP40 |
| Ambient temperature | -5 °C ... 50 °C |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Housing material | PBT-reinforced |
| Material of pin contacts | Gold-platedBronze |
