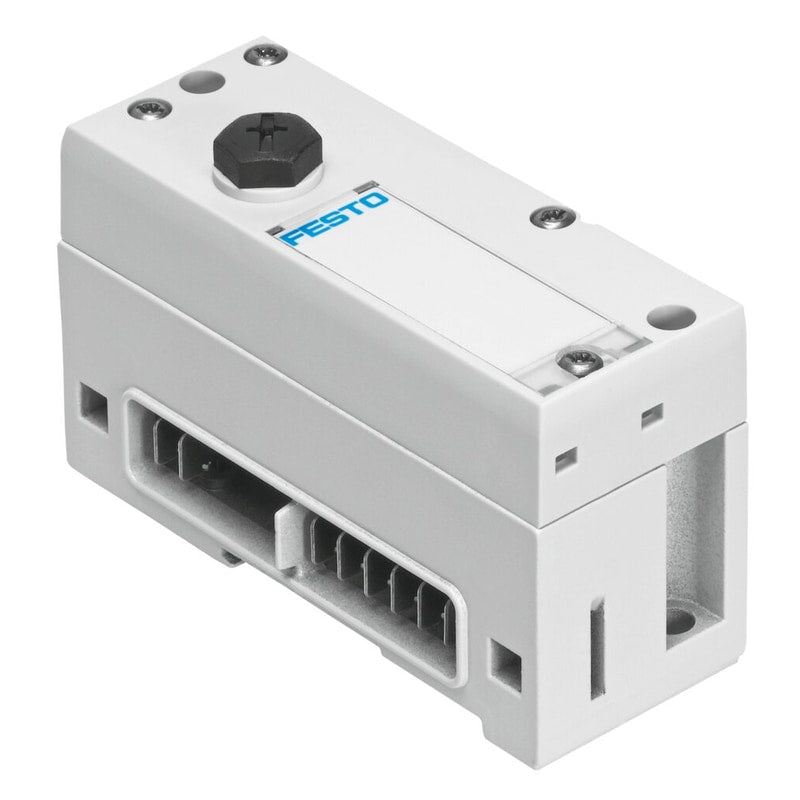

VMPAL-EPL-CPX

end plate VMPAL-EPL-CPX Operating pressure=-0,9 - 10 bar, Pilot pressure=3 - 8 bar, Corrosion resistance classification CRC=3 - High corrosion stress, Protection class=IP67, Ambient temperature=-5 - 50 °C

Width	40 mm
Length	107.3 mm
Max. number of valve positions	32
Valve terminal structure	Valve sizes can be mixed
Max. number of solenoid coils	32
Operating pressure	'-0.9 ... 10 bar
Pilot pressure	3 ... 8 bar
Nominal operating voltage DC	24 V
Corrosion resistance classification CRC	3 - High corrosion stress
Protection class	IP67
Note on degree of protection	in assembled condition
Ambient temperature	'-5 ... 50 °C
Product weight	130 g
