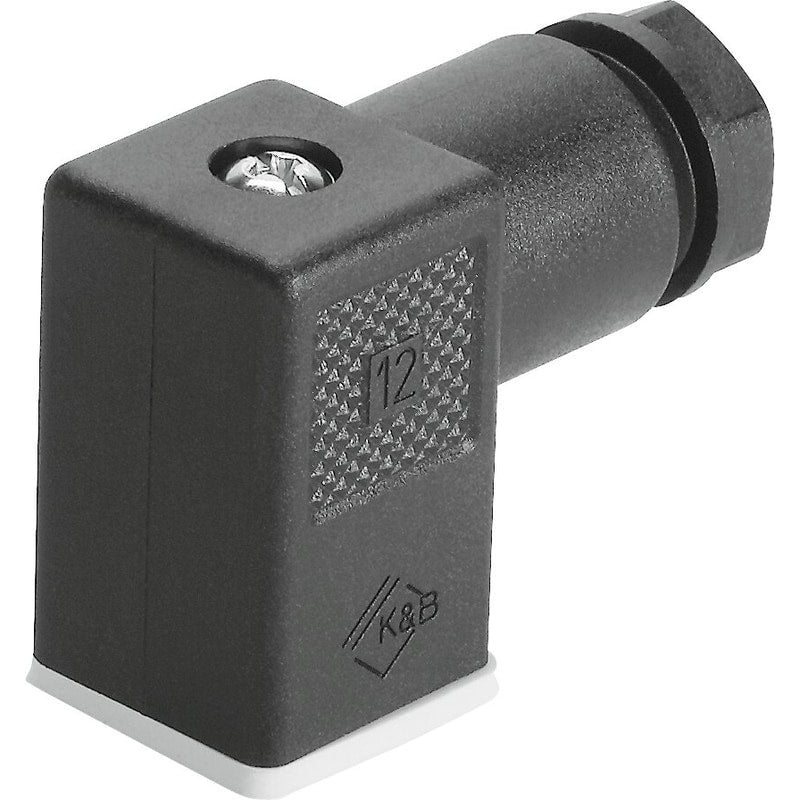

Plug socket
MSSD-EB-M12-24VDC-SD-EX
570367
GTIN 4052568058289
Vendor Festo
- Connection cross section
- 0.25 mm² - 0.5 mm²
- Degree of protection
- IP65 - as per IEC 60529
Regular price
$26.85
Unit price
MSSD-EB-M12-24VDC-SD-EX is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSSD-EB-M12-24VDC-SD-EX
Regular price
$26.85
Unit price
MSSD-EB-M12-24VDC-SD-EX is backordered and will ship as soon as it is back in stock.
| Type code | MSSD |
|---|---|
| Explosion prevention and protection | Zone 22 (ATEX)Observe the information on the certificateZone 2 (ATEX) |
| Type of mounting | On air solenoid valve with M2.5 central screw |
| Electrical connection | Socket, angledForm Cas per DIN EN 175301-803Rectangular design3-pin |
| DC operating voltage range | 0 V ... 30 V |
| Operating voltage range AC | 0 V ... 24 V |
| Current rating at 40°C | 0.25 |
| Surge resistance | 0.8 kV |
| Approved cable diameter | 4 mm ... 6 mm |
| Connection cross section | 0.25 mm² ... 0.5 mm² |
| Degree of protection | IP65as per IEC 60529 |
| Ambient temperature | -25 °C ... 125 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Housing material | PA-reinforced |
| Seals material | HNBR |
| Cable fitting | M12 |
