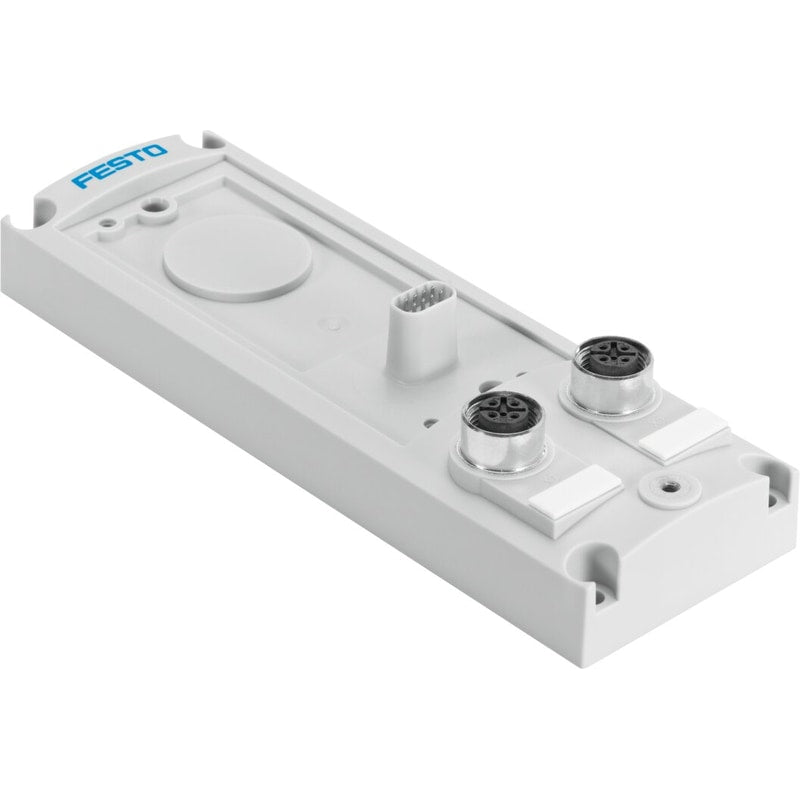

Electrical sub-base
CAPC-F1-E-M12
570042
GTIN 4052568216511
Vendor Festo
Regular price
$149.59
Unit price
CAPC-F1-E-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CAPC-F1-E-M12
Regular price
$149.59
Unit price
CAPC-F1-E-M12 is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 50 mm x 148 mm x 28 mm |
|---|---|
| Type code | CAPC |
| Fieldbus interface | 2x M12 bushing 5-pin |
| DC operating voltage range | 18 V ... 30 V |
| Max. power supply | 0.166666666666667 |
| Nominal operating voltage DC | 24 V |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Degree of protection | IP67IP65 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | c UL us - Listed (OL) |
| Product weight | 85 g |
| Cable length | 20 m |
| Note on materials | RoHS-compliant |
| Housing material | PA |
