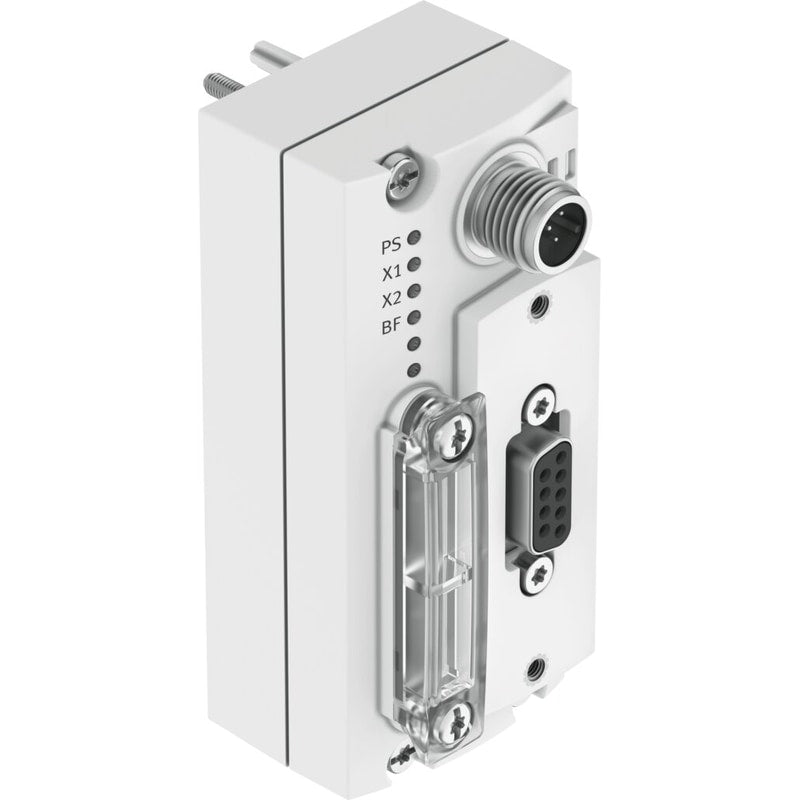

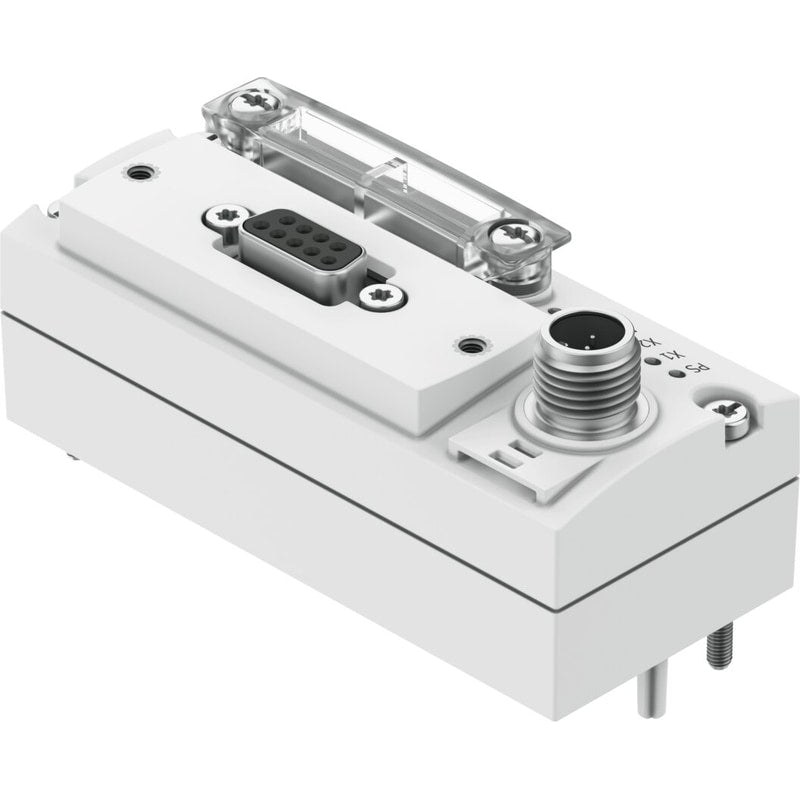

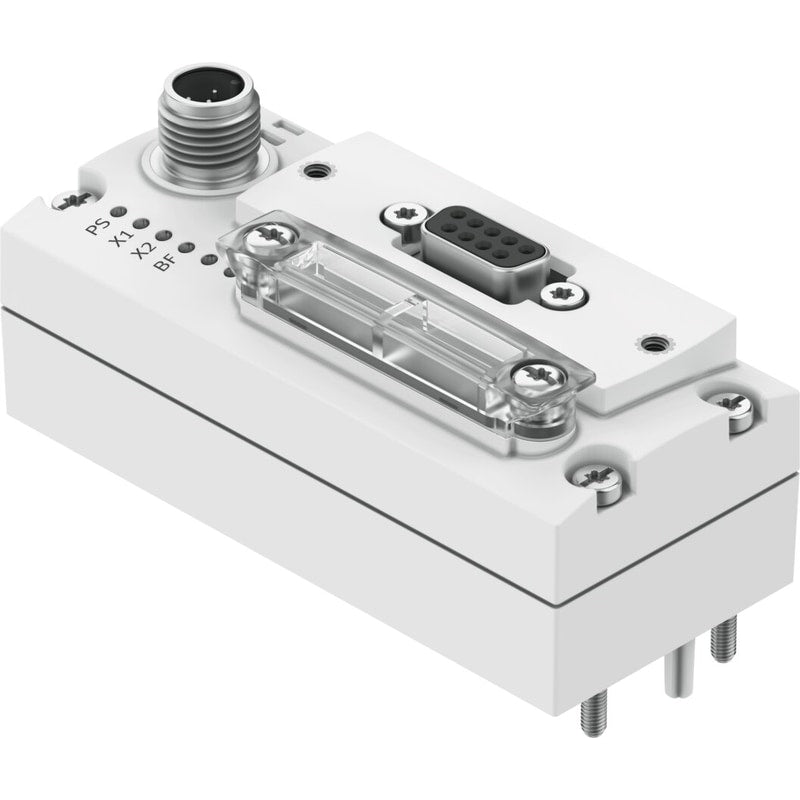

Bus node
CTEU-PB
570040
GTIN 4052568216504
Vendor Festo
- Protocol
- Profibus DP
- DC operating voltage range
- 18 V - 30 V
- Intrinsic current consumption at nominal operating voltage
- Typ. 100 mA
- Fieldbus interface, protocol
- PROFIBUS DP
- Degree of protection
- IP65 - IP67
Regular price
$437.27
Unit price
CTEU-PB is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CTEU-PB
Regular price
$437.27
Unit price
CTEU-PB is backordered and will ship as soon as it is back in stock.
bus node CTEU-PB Dimensions W x L x H=40 mm x 91 mm x 50 mm, Fieldbus interface=(* 2x M12x1, 5-pin, B-coded, * Sub-D socket, 9-pin, * Sub-D plug, for self-assembly), Diagnosis=(* - Communication error, * - System diagnostics, * - Undervoltage), Configuration support=Device database file, Additional functions=(* Emergency Message, * System status via diagnostic test)
| Dimensions W x L x H | 40 mm x 91 mm x 50 mm |
|---|---|
| Grid dimension | 40 mm |
| Mounting type | auf Elektrik-Anschlussplatteauf Elektrik-Anschaltung |
| Product weight | 90 g |
| Protocol | Profibus DP |
| Fieldbus interface | PROFIBUS |
| Fieldbus interface, protocol | PROFIBUS DP |
| Fieldbus interface, type of connection | Plug socket |
| Fieldbus interface, connection technology | Sub-D |
| Fieldbus interface, number of pins/wires | 9 |
| Note regarding fieldbus interface | Optional connection technology with accessories:Plug connector/socket M12x1 B-coded, 5-pin, degree of protection IP65 |
| Fieldbus interface, electrical isolation | Yes |
| Fieldbus interface, transmission rate | 9,6 kbit/s19,2 kbit/s93,75 kbit/s187,5 kbit/s500 kbit/s1,5 Mbit/s12 Mbit/s |
