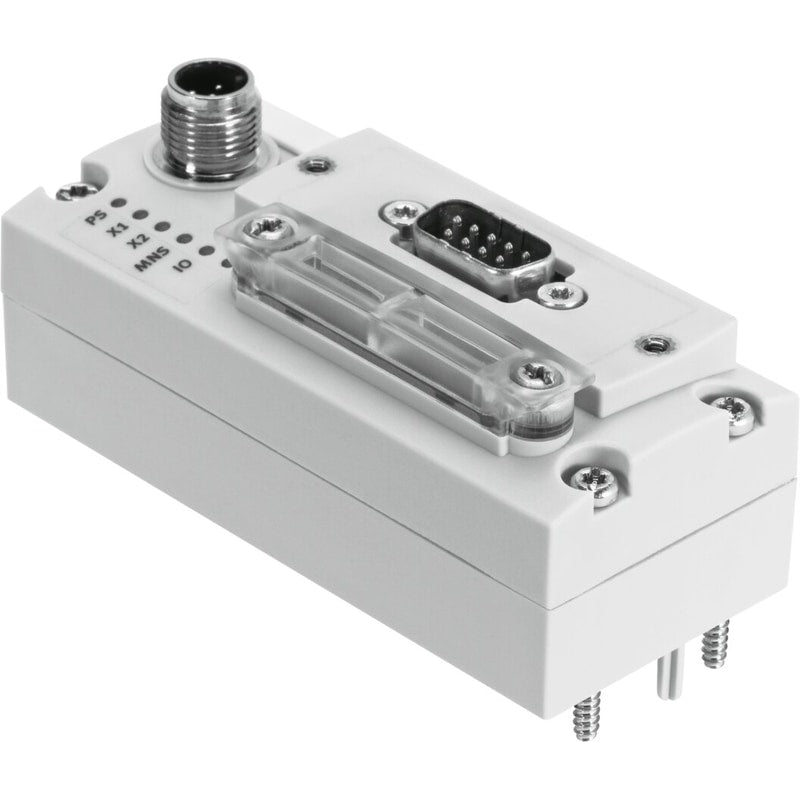

Bus node
CTEU-DN
570039
GTIN 4052568216498
Vendor Festo
- Protocol
- DeviceNet
- DC operating voltage range
- 18 V - 30 V
- Intrinsic current consumption at nominal operating voltage
- Typ. 65 mA
- Fieldbus interface, protocol
- DeviceNet
- Degree of protection
- IP65 - IP67
Regular price
$437.27
Unit price
CTEU-DN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CTEU-DN
Regular price
$437.27
Unit price
CTEU-DN is backordered and will ship as soon as it is back in stock.
bus node CTEU-DN Dimensions W x L x H=40 mm x 91 mm x 50 mm, Fieldbus interface=(* 2x M12x1, 5-pin, * 5-pin terminal strip, * Sub-D plug, for self-assembly, * Sub-D, 9-pin, socket), Diagnosis=(* - Communication error, * - System diagnostics, * - Undervoltage), Configuration support=EDS file, Additional functions=(* - Acyclic data access via "Explicit Message", * Quickconnect, * System status can be represented using process data)
| Dimensions W x L x H | 40 mm x 91 mm x 50 mm |
|---|---|
| Grid dimension | 40 mm |
| Mounting type | auf Elektrik-Anschlussplatteauf Elektrik-Anschaltung |
| Product weight | 90 g |
| Protocol | DeviceNet |
| Fieldbus interface | CAN-Bus |
| Fieldbus interface, protocol | DeviceNet |
| Fieldbus interface, type of connection | Plug |
| Fieldbus interface, connection technology | Sub-D |
| Fieldbus interface, number of pins/wires | 9 |
| Note regarding fieldbus interface | Optional connection technology with accessories:Optional connection technology with accessories: micro style (plug connector/socket M12x1 A-coded, 5-pin, degree of protection IP65), open style (terminal strip, 5-pin, degree of protection IP20)Open Style (screw terminal, 5-pin, degree of protection IP20) |
| Fieldbus interface, electrical isolation | Yes |
| Fieldbus interface, transmission rate | 125 kbit/s250 kbit/s500 kbit/s |
