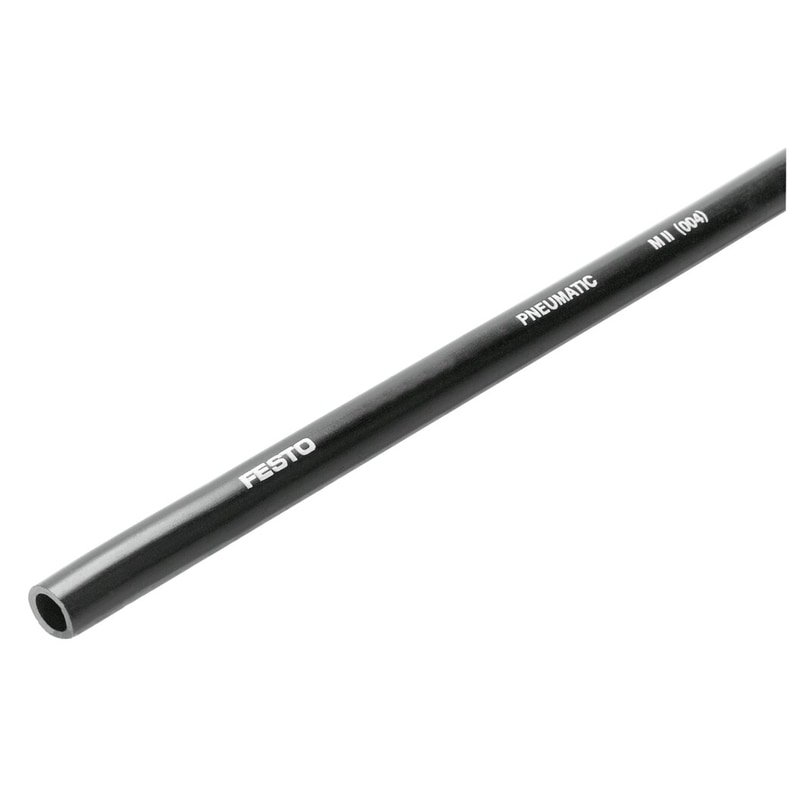

Plastic tubing
PEN-3/8-SW-150-CB
569885
GTIN 4052568372002
Vendor Festo
- External-Ø inches
- 3/8
- Bending radius relevant for flow rate
- 39.929 mm
- Temperature-dependent operating pressure
- -0.95 bar - 10 bar
- Ambient temperature
- -30 °C - 60 °C
Regular price
$0.65
Unit price
PEN-3/8-SW-150-CB Plastic tubing is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PEN-3/8-SW-150-CB
Regular price
$0.65
Unit price
PEN-3/8-SW-150-CB Plastic tubing is backordered and will ship as soon as it is back in stock.
plastic tubing PEN-3/8-SW-150-CB standard O.D tubing, for QS plug connectors, polyethylene (not approved for use in the food industry). Outer diameter, inches=3/8, Bending radius relevant for flow rate=0,131 Fuß, Min. bending radius=0,088 Fuß, Temperature dependent operating pressure=-14,4 - 145 Psi, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Outside diameter | 3/8" |
|---|---|
| Bending radius relevant for flow rate | 0.131 ft |
| Min. bending radius | 0.088 ft |
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Tubing test conditions | Suitable for energy chains: > 5 million cycles to FN 942021 |
| Temperature dependent operating pressure | '-14.4 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Ambient temperature | '-22 ... 140 °F |
| Product weight according to length | 0.376 oz/ft |
| Pneumatic connection | For push-in connector outside diameter 3/8" |
| Color | Black |
| Shore hardness | D 52 +/-3 |
| Materials note | Free of copper and PTFEConforms to RoHS |
