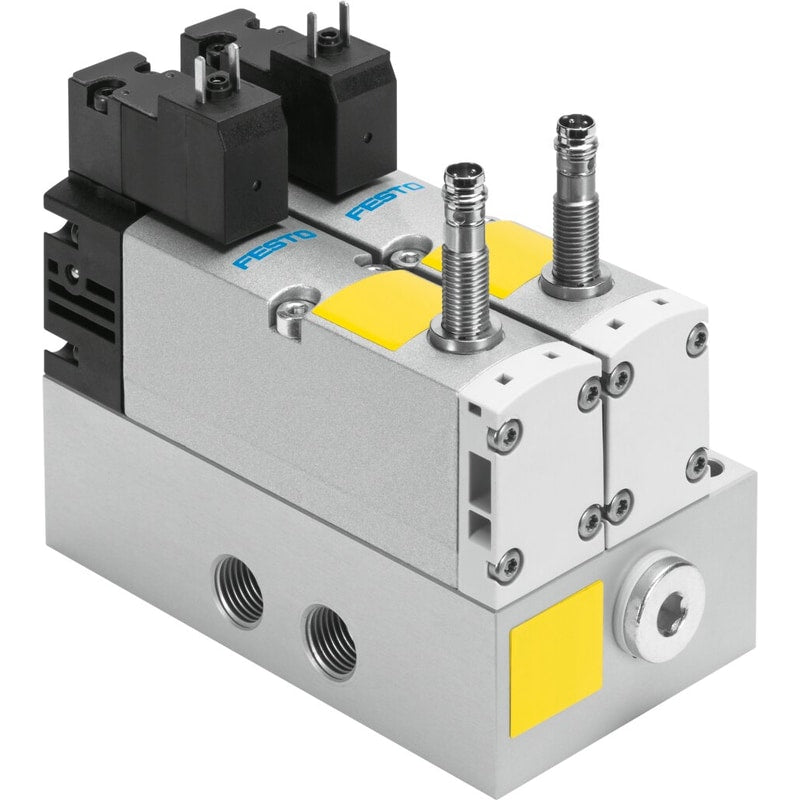

Control block
VOFA-L26-T52-M-G14-1C1-ANP
569820
GTIN 4052568216474
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 950 l/min
- Pneumatic connection 1
- G1/4
- Operating pressure
- 3 bar - 10 bar
Regular price
$1,186.51
Unit price
VOFA-L26-T52-M-G14-1C1-ANP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VOFA-L26-T52-M-G14-1C1-ANP
Regular price
$1,186.51
Unit price
VOFA-L26-T52-M-G14-1C1-ANP is backordered and will ship as soon as it is back in stock.
control block VOFA-L26-T52-M-G14-1C1-ANP Valve function=5/2 monostable, Type of actuation=electrical, Width=65 mm, Standard nominal flow rate=950 l/min, Operating pressure=3 - 10 bar
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Width | 65 mm |
| Standard nominal flow rate | 950 l/min |
| Operating pressure | 3 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Protection class | IP65NEMA 4 |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | EN 60947-5-2 |
| Manual override | None |
