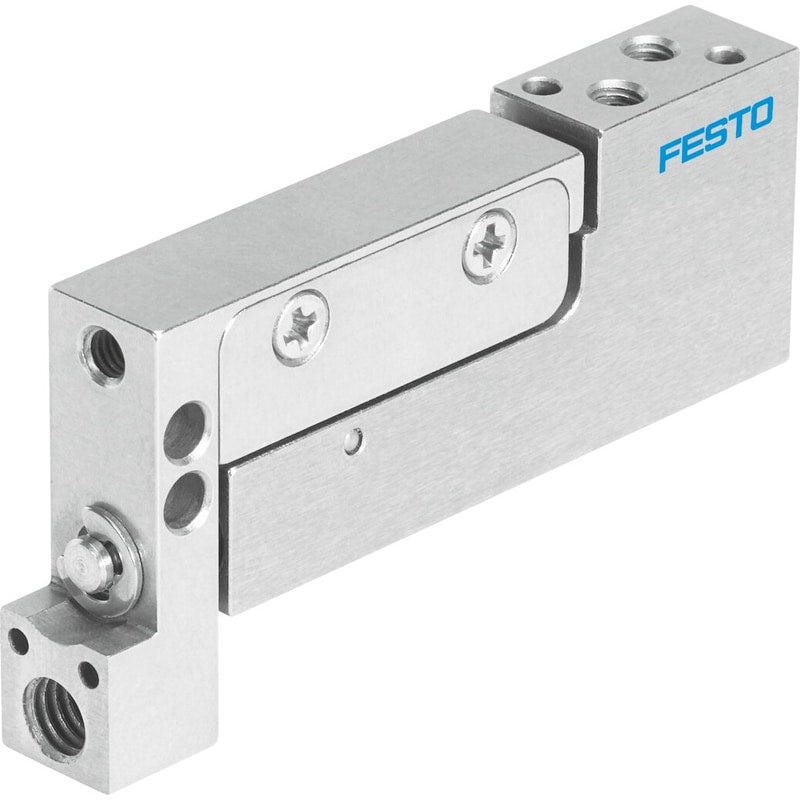

Mini slide
DGSC-6-10-P-L
569793
GTIN 4052568216450
Vendor Festo
Regular price
$427.03
Unit price
DGSC-6-10-P-L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DGSC-6-10-P-L
Regular price
$427.03
Unit price
DGSC-6-10-P-L is backordered and will ship as soon as it is back in stock.
mini slide DGSC-6-10-P-L Stroke=10 mm, Piston diameter=6 mm, Operating mode of drive unit=Yoke, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 10 mm |
|---|---|
| Piston diameter | 6 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Yoke kinematics |
| Position detection | No |
| Operating pressure | 1 ... 6 bar |
| Repetition accuracy | 0,2 mm |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
