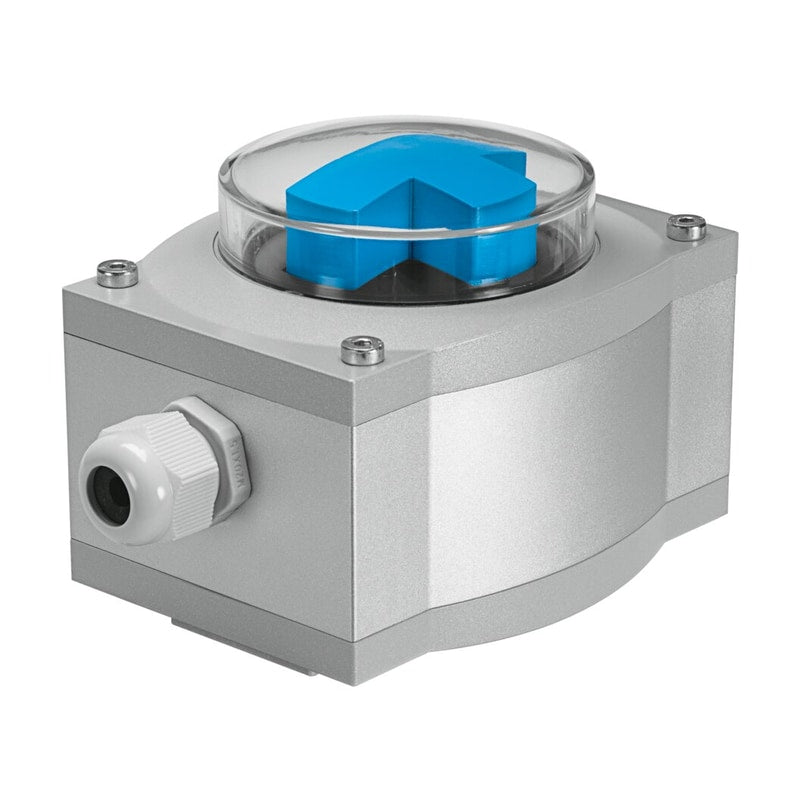

Limit switch box
SRAP-M-CA1-GR270-1-A-TP20-EX2
568241
GTIN 4052568216184
Vendor Festo
Regular price
$697.46
Unit price
SRAP-M-CA1-GR270-1-A-TP20-EX2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRAP-M-CA1-GR270-1-A-TP20-EX2
Regular price
$697.46
Unit price
SRAP-M-CA1-GR270-1-A-TP20-EX2 is backordered and will ship as soon as it is back in stock.
sensor box SRAP-M-CA1-GR270-1-A-TP20-EX2 Design=Angular, Based on the standard=VDI/VDE 3845 (NAMUR), Authorisation=(* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity)=(* to EU directive for EMC, * to EU directive explosion protection (ATEX)), ATEX category Gas=II 3G
| Design | Angular |
|---|---|
| Based on the standard | VDI/VDE 3845 (NAMUR) |
| Authorisation | RCM Markc UL us - Recognized (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMCto EU directive explosion protection (ATEX) |
| ATEX category Gas | II 3G |
| Explosion ignition protection type Gas | Ex nA IIC T5 X Gc |
| ATEX category Dust | II 3D |
| Explosion ignition protection type Dust | Ex tc IIIC T90°C X Dc IP65 |
| Explosion protection certification outside the EU | EPL Dc (RU)EPL Gc (RU) |
| Explosion-proof ambient temperature | '-20°C <= Ta <= +80°C |
| Materials note | Conforms to RoHS |
| Measured variable | Rotation angle |
| Measuring principle | Hall magnetic |
