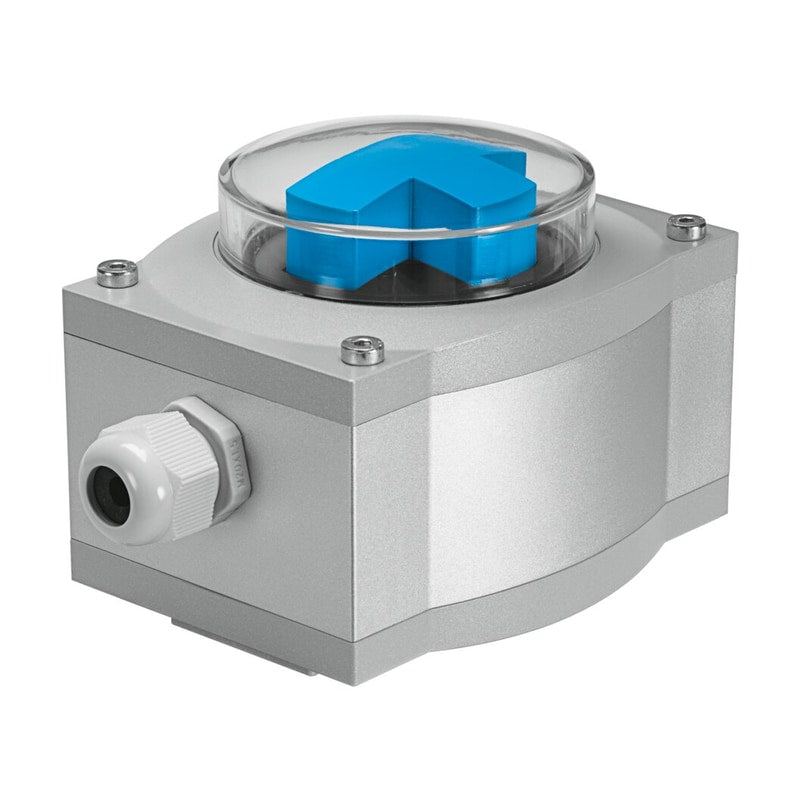

Limit switch box
SRAP-M-CA1-GR270-1-A-TM20
568238
GTIN 4052568216160
Vendor Festo
Regular price
$627.71
Unit price
SRAP-M-CA1-GR270-1-A-TM20 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRAP-M-CA1-GR270-1-A-TM20
Regular price
$627.71
Unit price
SRAP-M-CA1-GR270-1-A-TM20 is backordered and will ship as soon as it is back in stock.
sensor box SRAP-M-CA1-GR270-1-A-TM20 Design=Angular, Based on the standard=VDI/VDE 3845 (NAMUR), Authorisation=(* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS
| Design | Angular |
|---|---|
| Based on the standard | VDI/VDE 3845 (NAMUR) |
| Authorisation | RCM Markc UL us - Recognized (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Conforms to RoHS |
| Measured variable | Rotation angle |
| Measuring principle | Hall magnetic |
| Ambient temperature | '-20 ... 80 °C |
| Analogue output | 4 - 20 mA |
| Repetition accuracy analogue output in ± ° | 1 deg |
| Short circuit strength | Yes |
| Overload withstand capability | Available |
| Operating voltage range DC | 15 ... 30 V |
