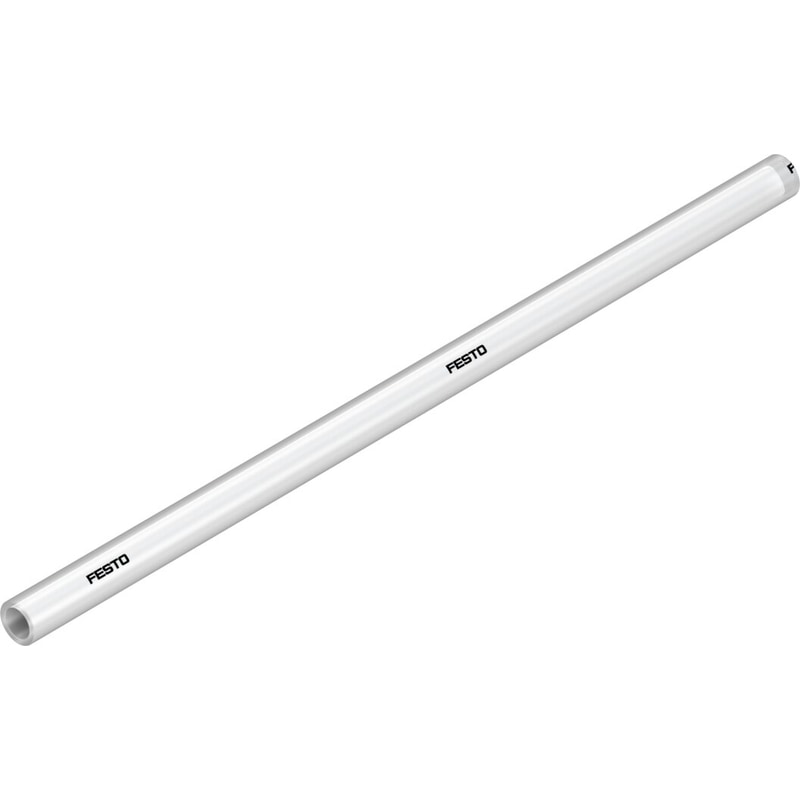

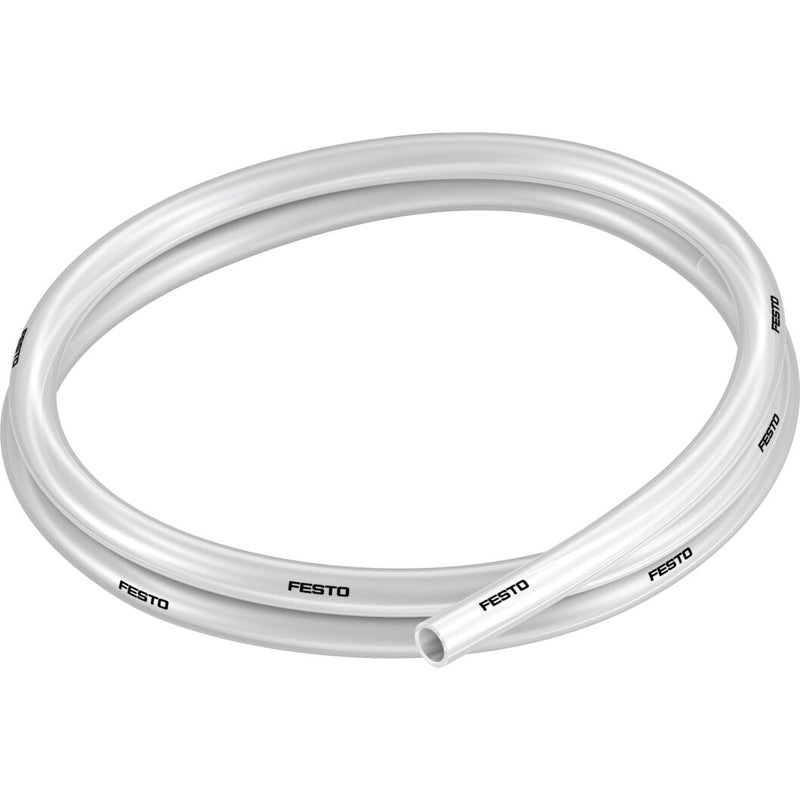

Plastic tubing
PUN-H-3/8-NT-150-CB (150 Feet)
567966
GTIN 4052568370329
Vendor Festo
- External-Ø inches
- 3/8
- Bending radius relevant for flow rate
- 52.121 mm
- Temperature-dependent operating pressure
- -0.993 bar - 9.997 bar
- Ambient temperature
- -35 °C - 63 °C
Regular price
$1.06
Unit price
PUN-H-3/8-NT-150-CB (150 Feet) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PUN-H-3/8-NT-150-CB (150 Feet)
Regular price
$1.06
Unit price
PUN-H-3/8-NT-150-CB (150 Feet) is backordered and will ship as soon as it is back in stock.
plastic tubing PUN-H-3/8-NT-150-CB Approved for use in food processing (hydrolysis resistant) Outer diameter, inches=3/8, Bending radius relevant for flow rate=0,171 Fuß, Min. bending radius=0,081 Fuß, Temperature dependent operating pressure=-14,4 - 145 Psi, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Outside diameter | 3/8" |
|---|---|
| Bending radius relevant for flow rate | 0.171 ft |
| Min. bending radius | 0.081 ft |
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Tubing test conditions | Suitable for energy chains: > 5 million cycles to FN 942021 |
| Temperature dependent operating pressure | '-14.4 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-31 ... 145 °F |
| Product weight according to length | 0.48 oz/ft |
| Pneumatic connection | For push-in connector outside diameter 3/8" |
| Color | neutral |
| Shore hardness | D 52 +/-3 |
