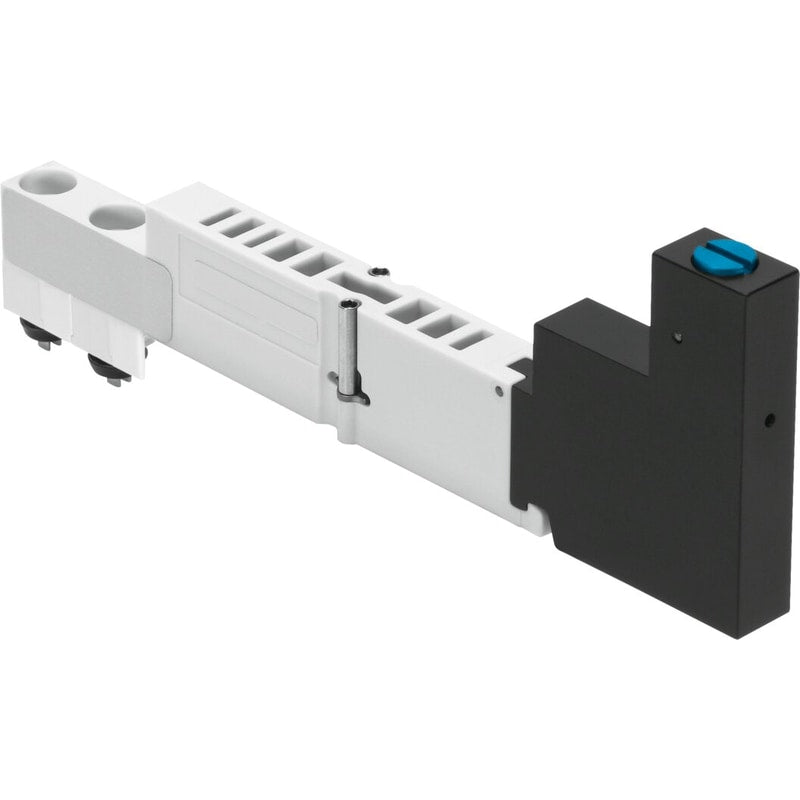

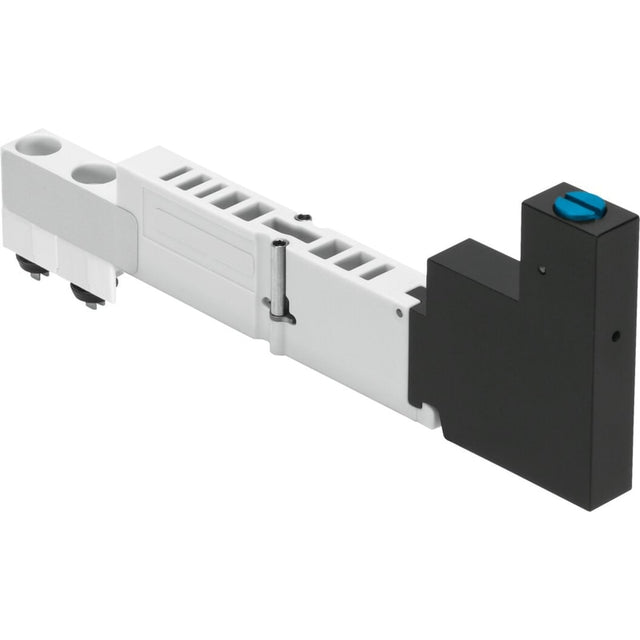

Vertical pressure shut-off plate
VMPA1-HS
567805
GTIN 4052568100742
Vendor Festo
Regular price
$83.91
Unit price
VMPA1-HS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA1-HS
Regular price
$83.91
Unit price
VMPA1-HS is backordered and will ship as soon as it is back in stock.
vertical pressure shut-off plate VMPA1-HS Width=10 mm, Assembly position=Any, Pneumatic vertical stacking=Shut-off for 1, Operating pressure=3 - 8 bar, Standard nominal flow rate ventilation=103 l/min
| Width | 10 mm |
|---|---|
| Assembly position | Any |
| Pneumatic vertical stacking | Shut-off for 1 |
| Operating pressure | 3 ... 8 bar |
| Standard nominal flow rate ventilation | 103 l/min |
| Standard nominal flow rate venting | 213 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Protection class | IP65 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 60 g |
| Vertical stacking type of mounting | on manifold blockon individual sub-base |
