MHJ10-S-2,5-QS-1/4-HF/LP-U
567800
Vendor Festo
Regular price
$135.70
Unit price
MHJ10-S-2,5-QS-1/4-HF/LP-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MHJ10-S-2,5-QS-1/4-HF/LP-U
Regular price
$135.70
Unit price
MHJ10-S-2,5-QS-1/4-HF/LP-U is backordered and will ship as soon as it is back in stock.

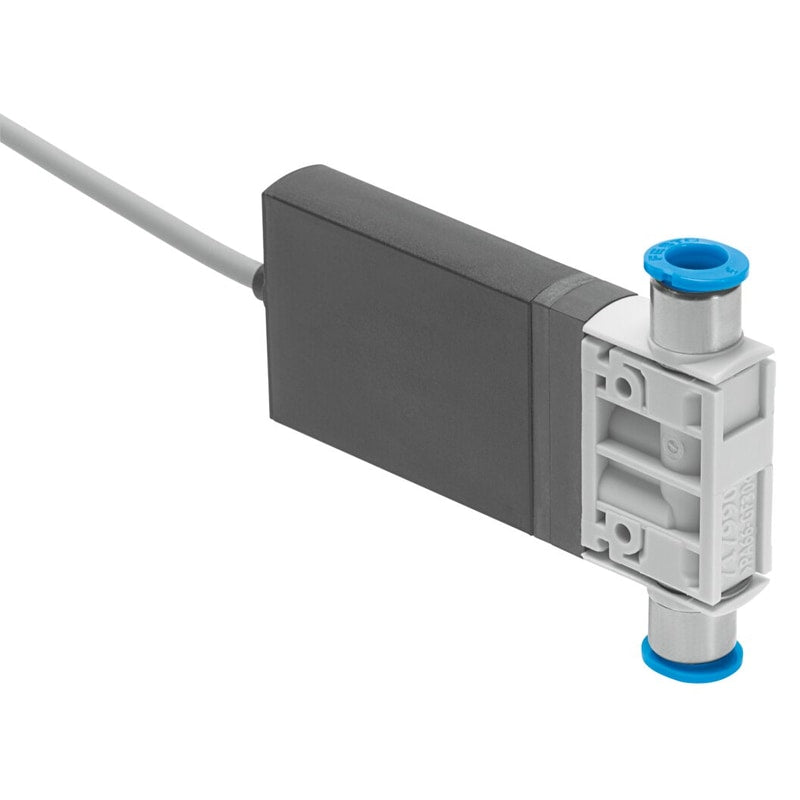

solenoid valve MHJ10-S-2,5-QS-1/4-HF/LP-U Valve function=2/2 closed, monostable, Type of actuation=electrical, Width=10 mm, Standard nominal flow rate=160 l/min, Operating pressure=0,5 - 4 bar
| Valve function | 2/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 10 mm |
| Standard nominal flow rate | 160 l/min |
| Operating pressure | 0.5 ... 4 bar |
| Design structure | Poppet valve without spring return |
| Type of reset | Air spring |
| Protection class | IP65 |
| Grid dimension | 10.5 mm |
| Note on operation | Power supply unit must be able to supply at least 1.7 A without voltage dropDo not operate without flowFor block mounting with flow, max. ambient temperature 45°C. |
| Sealing principle | Hard |
| Assembly position | Any |
| Manual override | None |
