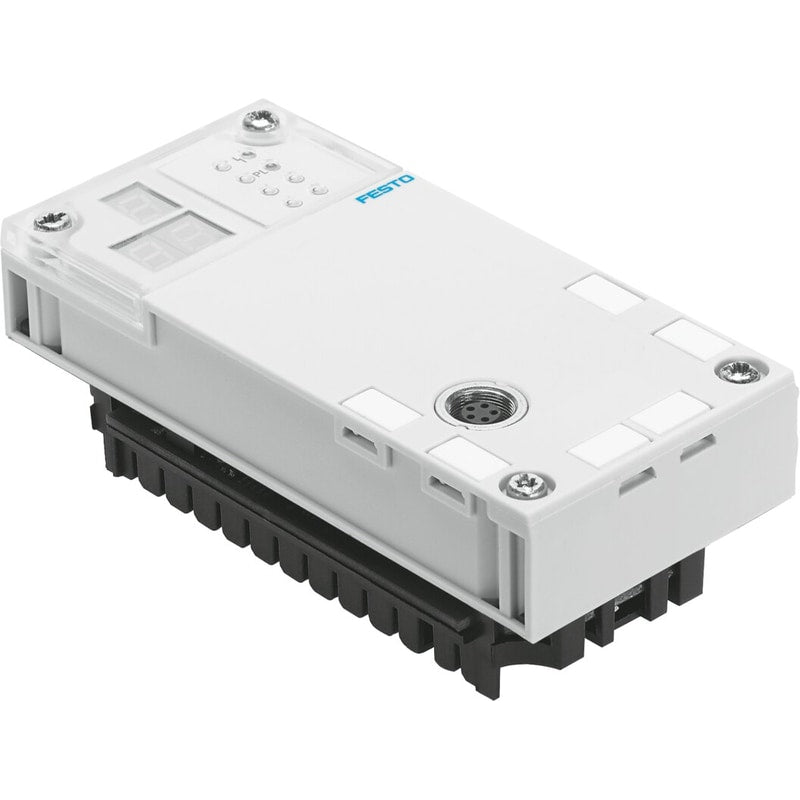

CPX-CMIX-M1-1

measuring module CPX-CMIX-M1-1 Dimensions W x L x H=50 mm x 107 mm x 55 mm, Diagnosis=Channel and module-orientated diagnostics, Short circuit strength=Yes, Device-specific diagnostics=(* Undervoltage modules, * Undervoltage measuring system, * Via local 7 segment display), Max. no. of modules=9

Dimensions W x L x H	50 mm x 107 mm x 55 mm
Diagnosis	Channel and module-orientated diagnostics
Short circuit strength	Yes
Device-specific diagnostics	Undervoltage modulesUndervoltage measuring systemVia local 7 segment display
Max. no. of modules	9
Display	Seven-segment display
Status displays	LED yellow = PL (power load)LED red = error
Operating voltage range DC	18 ... 30 V
Nominal operating voltage DC	24 V
Power failure buffering	10 ms
Current consumption at nominal operating voltage	80 mA
Storage temperature	'-20 ... 70 °C
Relative air humidity	5 - 95 %non-condensing
