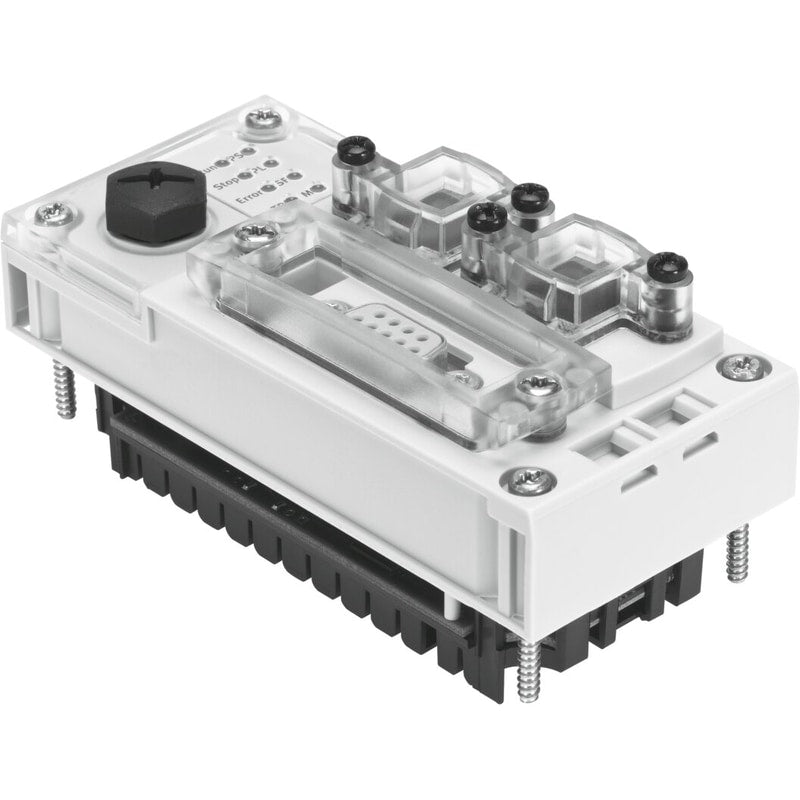

Control block
CPX-CEC
567346
GTIN 4052568215071
Vendor Festo
Regular price
$1,078.64
Unit price
CPX-CEC is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-CEC
Regular price
$1,078.64
Unit price
CPX-CEC is backordered and will ship as soon as it is back in stock.
control block CPX-CEC Modular controller Codesys V2.3, Ethernet, serial interfaces. Dimensions W x L x H=50 mm x 107 mm x 55 mm, Device-specific diagnostics=(* Channel and module-orientated diagnostics, * - Undervoltage/short circuit of modules, * - Diagnostic memory), CPU data=(* 32 MB Flash, * 32 MB RAM, * 400 MHz processor), Configuration support=CODESYS V2.3, Parameters configuring=CODESYS V2.3
| Dimensions W x L x H | 50 mm x 107 mm x 55 mm |
|---|---|
| Device-specific diagnostics | Channel and module-orientated diagnostics- Undervoltage/short circuit of modules- Diagnostic memory |
| CPU data | 32 MB Flash32 MB RAM400 MHz processor |
| Configuration support | CODESYS V2.3 |
| Parameters configuring | CODESYS V2.3 |
| Additional functions | Diagnostics functionsCommunication function RS232 |
| Control elements | Rotary switch for run/stop |
| Programming, operating language | DE, EN |
| Programming, file handling support | Yes |
| Baud rate | 10/100 bit/s per IEEE 802.3 (10BaseT) or 802.3u (100BaseTx) |
| Processing time | Approx. 200 µs/1 k instruction |
| Data Interface | RS 232 interfaceSub-D 9-pin, socket9,6 ... 230,4 kBit/sElectrically isolated |
| Intrinsic current consumption at operating voltage | Typically 85 mA |
