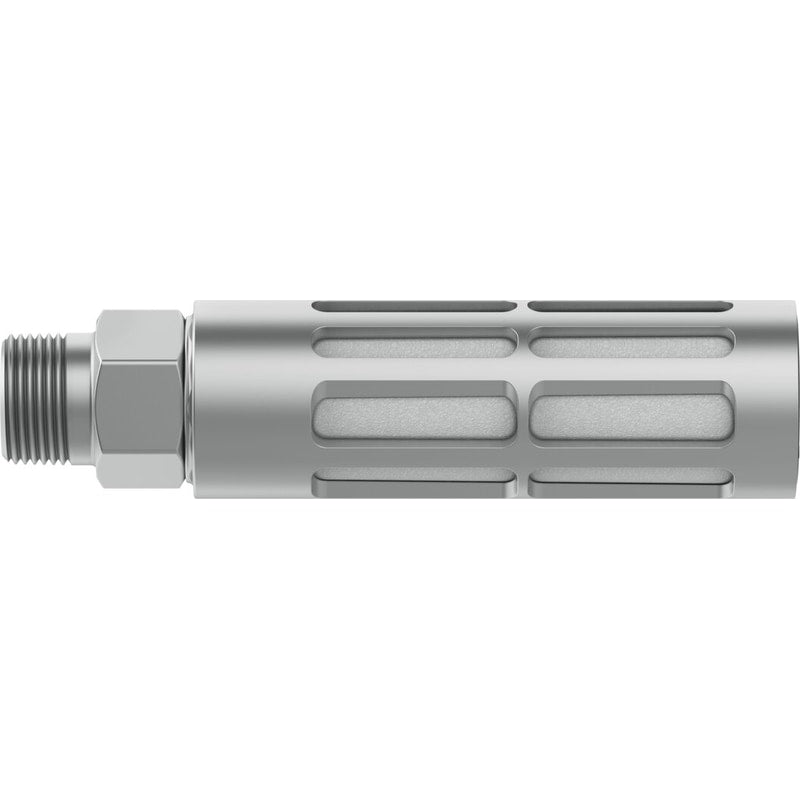

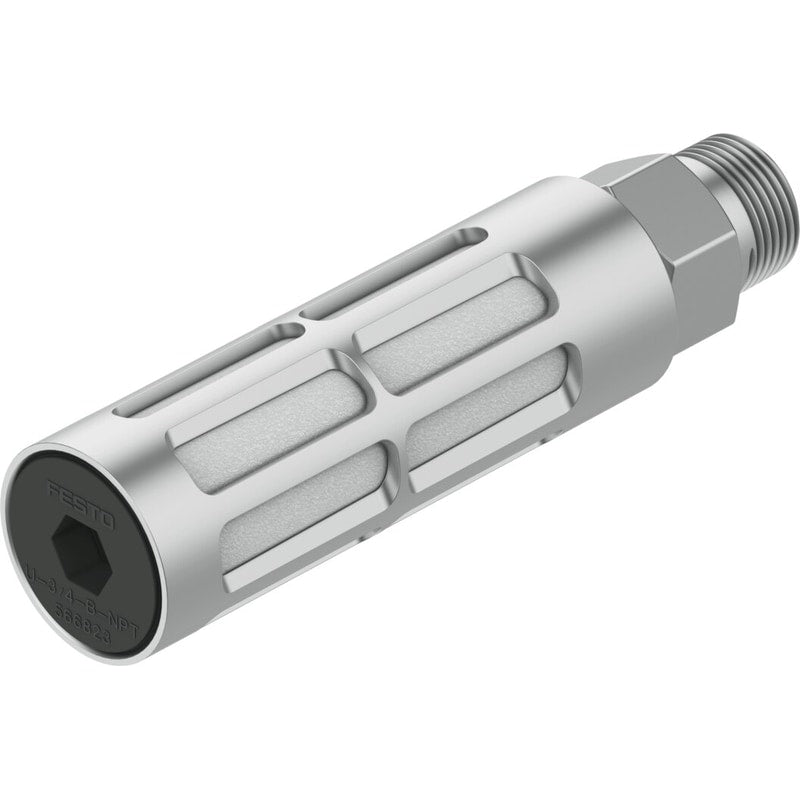

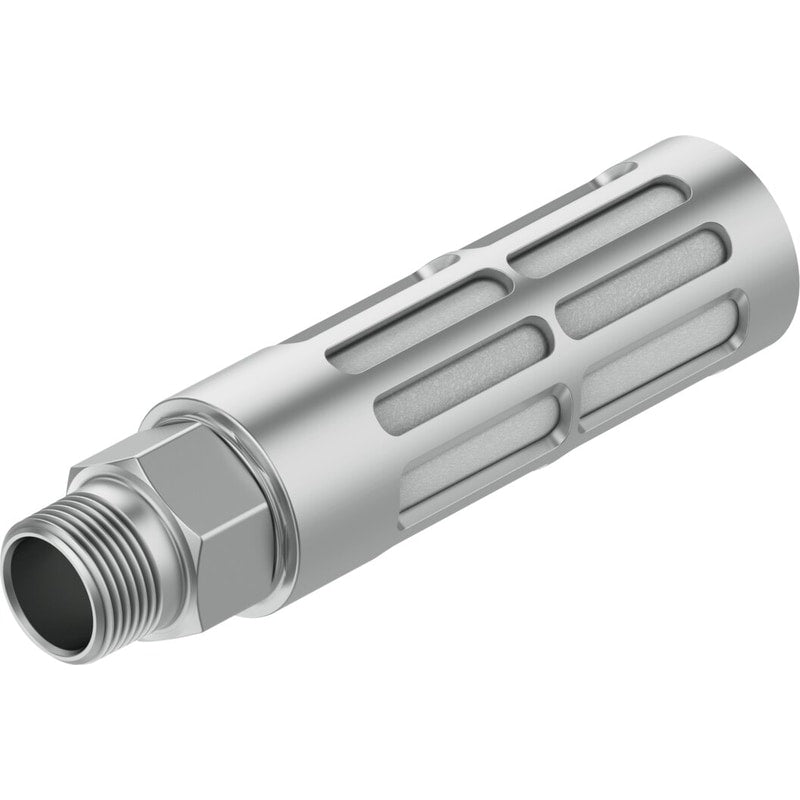

Pneumatic muffler
U-3/4-B-NPT
566823
GTIN 4052568100575
Vendor Festo
- Cushioning insert material
- PE
- Pneumatic connection
- 3/4 NPT
- Noise level
- 81 dB(A)
Regular price
$60.96
Unit price
U-3/4-B-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
U-3/4-B-NPT
Regular price
$60.96
Unit price
U-3/4-B-NPT is backordered and will ship as soon as it is back in stock.
silencer U-3/4-B-NPT For reducing noise and avoiding contamination at the exhaust ports of pneumatic components. Assembly position=Any, Operating pressure complete temperature range=0 - 10 bar, Flow rate to atmosphere=11834 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible
| Assembly position | Any |
|---|---|
| Operating pressure complete temperature range | 0 ... 10 bar |
| Flow rate to atmosphere | 11,834 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Sound pressure level | 81 dB(A) |
| Ambient temperature | '-10 ... 70 °C |
| Product weight | 128 g |
| Pneumatic connection | NPT3/4-14 |
| Material of silencer insert | PE |
| Material of threaded plug | Aluminium |
| Materials note | Free of copper and PTFEConforms to RoHS |
