Electrical sub-base
VAVE-L1-1VL1-LP
566722
GTIN 4052568057626
Vendor Festo
Regular price
$8.03
Unit price
VAVE-L1-1VL1-LP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAVE-L1-1VL1-LP
Regular price
$8.03
Unit price
VAVE-L1-1VL1-LP is backordered and will ship as soon as it is back in stock.

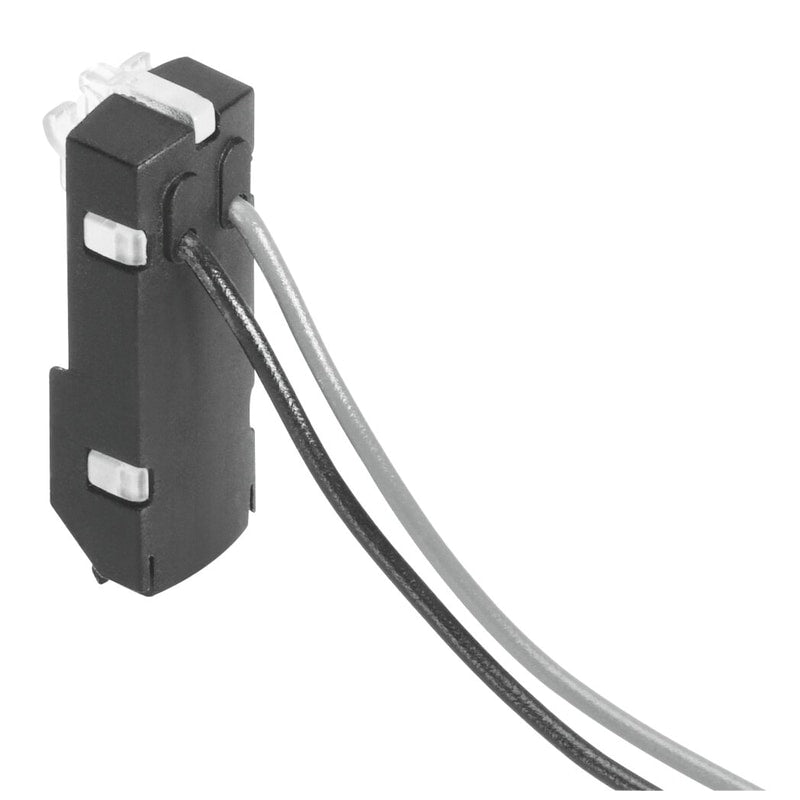

electrical connection box VAVE-L1-1VL1-LP Assembly position=Any, Polarity protected=Bipolar, Additional functions=Spark arresting, Signal status display=LED, Nominal operating voltage DC=(* 12 V, * 24 V)
| Assembly position | Any |
|---|---|
| Polarity protected | Bipolar |
| Additional functions | Spark arresting |
| Signal status display | LED |
| Nominal operating voltage DC | 12 V24 V |
| Surge strength | 0.8 kV |
| Degree of contamination | 3 |
| Extended ambient temperature | '-5 - 60 °C |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP40 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 4.6 g |
| Terminal cross-section | 0.14 mm2 |
