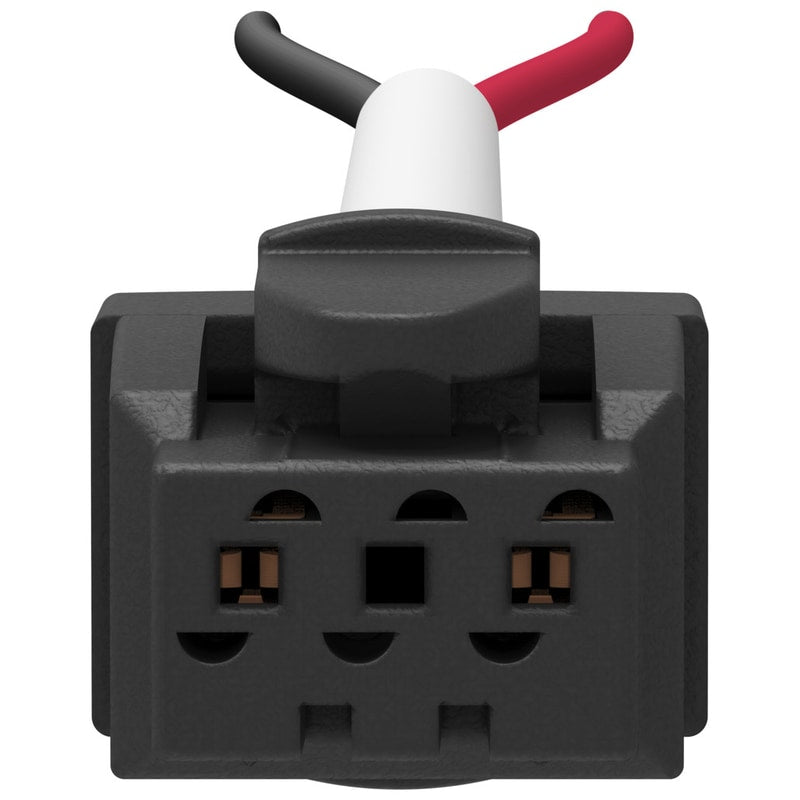

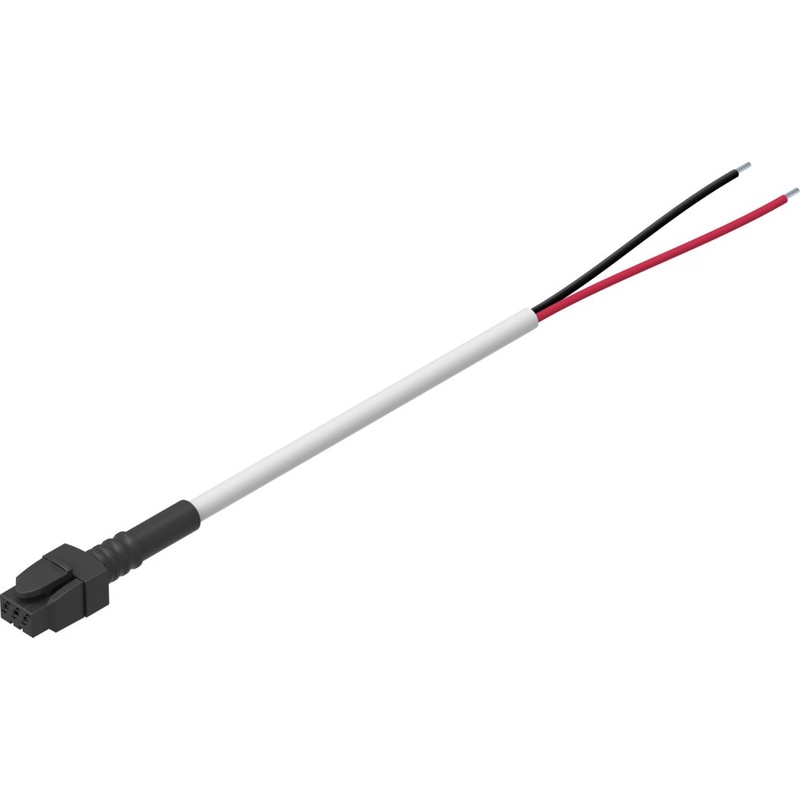

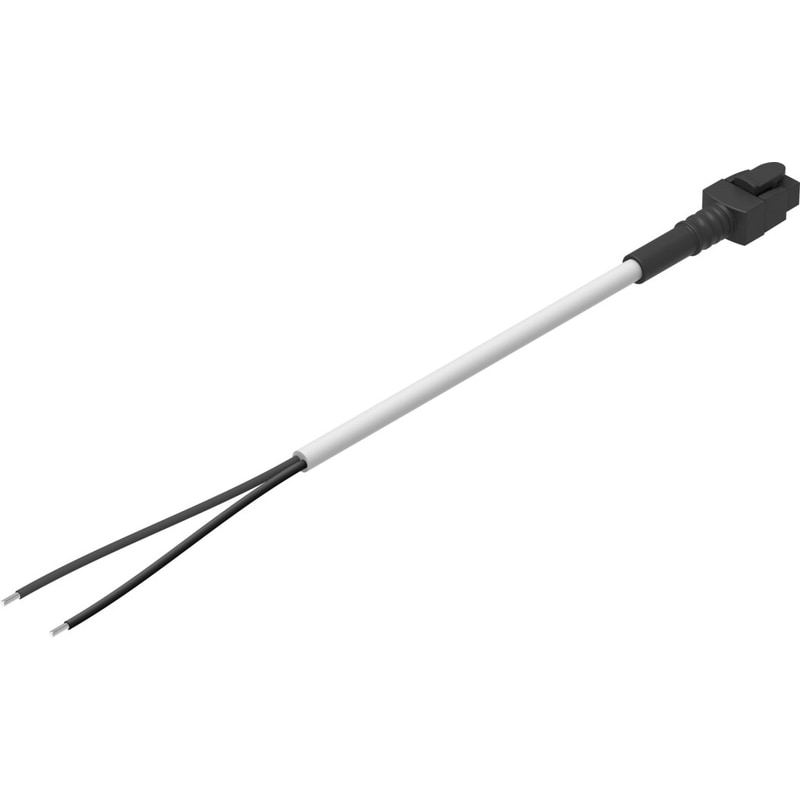

Plug socket with cable
NEBV-H1G2-P-0.5-N-LE2
566658
GTIN 4052568057350
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Connection diagram H
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Cable length
- 0.5 m
Regular price
$7.86
Unit price
NEBV-H1G2-P-0.5-N-LE2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBV-H1G2-P-0.5-N-LE2
Regular price
$7.86
Unit price
NEBV-H1G2-P-0.5-N-LE2 is backordered and will ship as soon as it is back in stock.
| Type code | NEBV |
|---|---|
| Cable designation | Without label holder |
| Product weight | 8 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Connection diagram H |
| Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection 1, type of mounting | Snap-locking |
| Electrical connection for input 1, connection pattern | 995622 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 |
| DC operating voltage range | 0 V ... 60 V |
| Current rating at 40°C | 0.125 |
| Cable length | 0.5 m |
| Cable characteristic | for static applications |
| Cable diameter | 3.4 mm |
| Cable design | 2 x 0.14 mm² |
| Wire ends | Cut off bluntlyStripped |
| Degree of protection | IP40 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -5 °C ... 60 °C |
| Note on materials | RoHS-compliant |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Housing material | POM |
| Housing colour | Black |
| Material of pin contacts | Copper alloyTin-plated |
| Insulating sheath material | PVC |
| Mounting position | Any |
