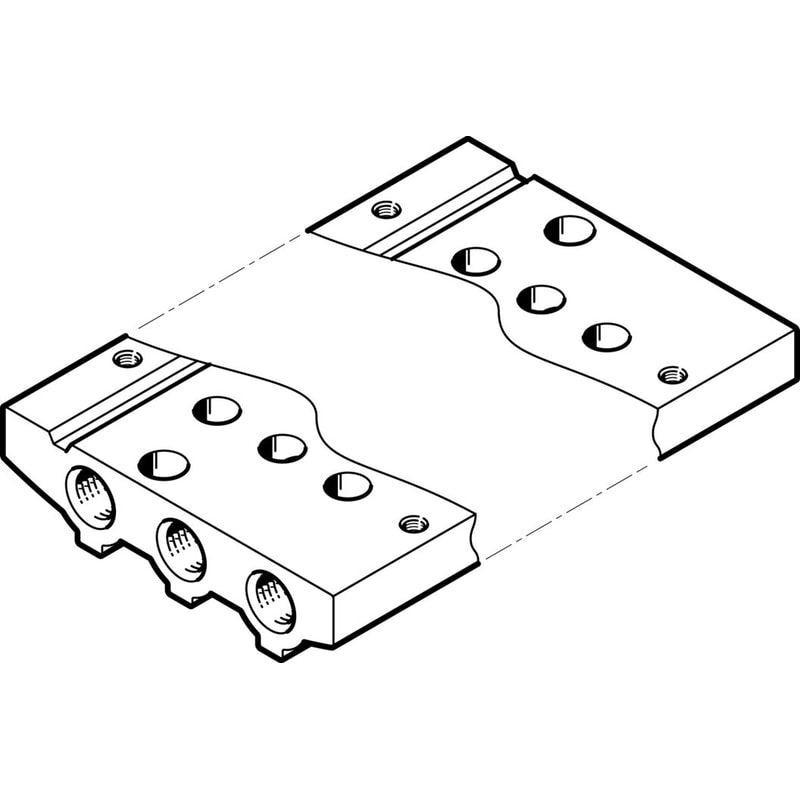

Manifold rail
VABM-L1-10AS-M5-2
566522
GTIN 4052568100230
Vendor Festo
Regular price
$29.13
Unit price
VABM-L1-10AS-M5-2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABM-L1-10AS-M5-2
Regular price
$29.13
Unit price
VABM-L1-10AS-M5-2 is backordered and will ship as soon as it is back in stock.
manifold rail VABM-L1-10AS-M5-2 Grid dimension=10,5 mm, Max. number of valve positions=16, Operating pressure=-0,9 - 10 bar, Corrosion resistance classification CRC=2 - Moderate corrosion stress, Authorisation=(* RCM Mark, * c CSA us (OL), * c UL us - Recognized (OL))
| Grid dimension | 10.5 mm |
|---|---|
| Max. number of valve positions | 16 |
| Operating pressure | '-0.9 ... 10 bar |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Authorisation | RCM Markc CSA us (OL)c UL us - Recognized (OL) |
| Max. tightening torque, H-rail mounting | 1.5 Nm |
| Max. tightening torque, valve mounting | 0.45 Nm |
| Max. tightening torque, wall mounting | 3 Nm |
| Product weight | 26 g |
| Pneumatic connection, port 1 | M5 |
| Pneumatic connection, port 3 | M5 |
| Pneumatic connection, port 5 | M5 |
| Materials note | Conforms to RoHS |
