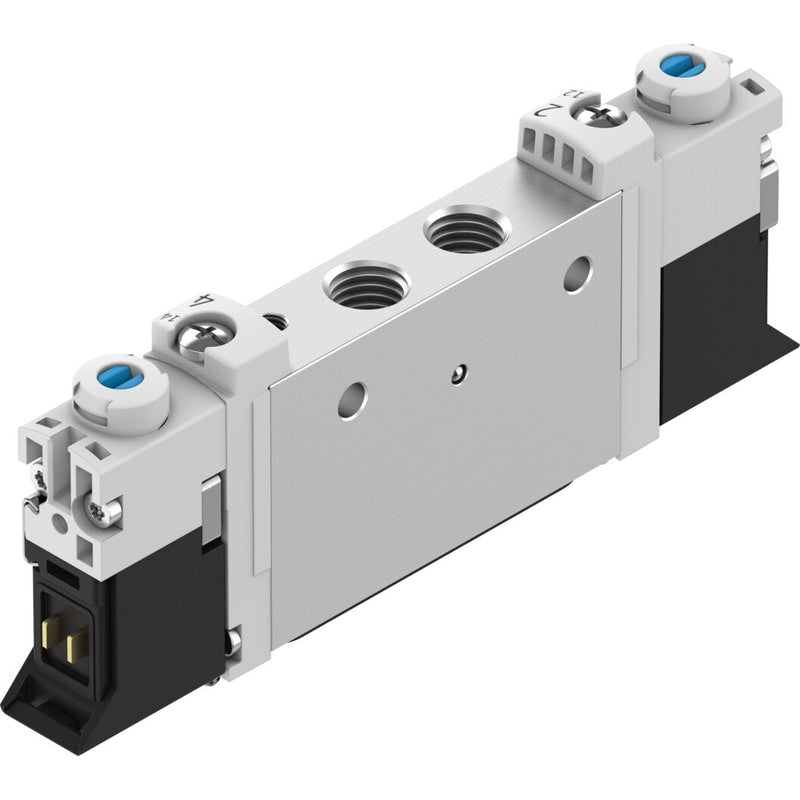

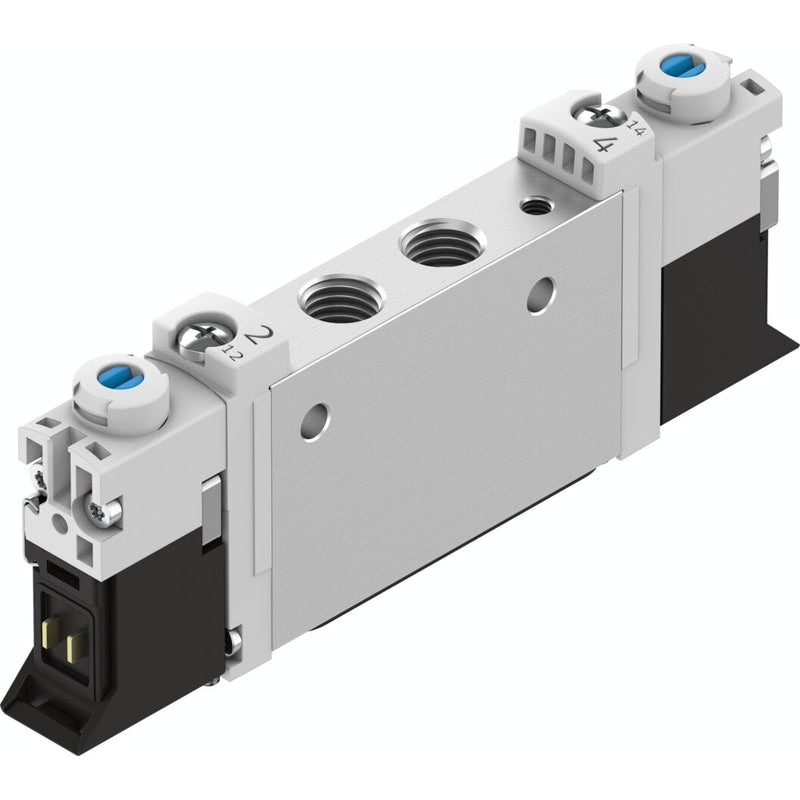

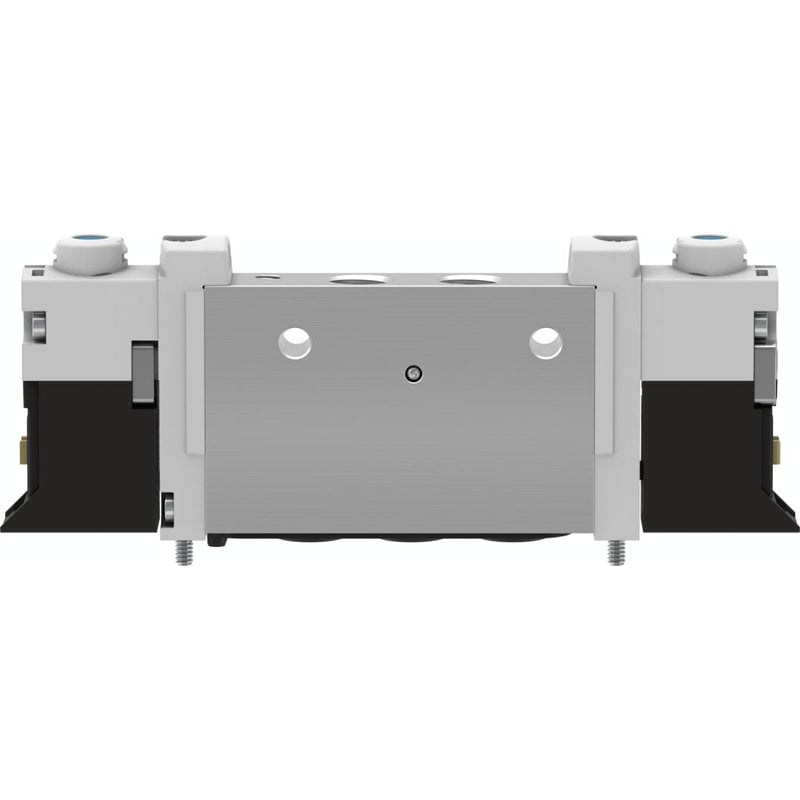

Air solenoid valve
VUVG-L10-T32U-AT-M7-1P3
566472
GTIN 4052568213800
Vendor Festo
- Valve function
- 2x3/2, open, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 170 l/min - 190 l/min
- Pneumatic working port
- M7
- Actuation type
- Electrical
Regular price
$93.21
Unit price
VUVG-L10-T32U-AT-M7-1P3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VUVG-L10-T32U-AT-M7-1P3
Regular price
$93.21
Unit price
VUVG-L10-T32U-AT-M7-1P3 is backordered and will ship as soon as it is back in stock.
The interior of this universal valve has a new design that is an outstanding combination of flow intensity and compact design. Both as an individual valve or as a valve manifold, the entire VUVG family is designed to cater precisely for all requirements.
| Valve function | 2x3/2, open, monostable |
|---|---|
| Lap | Overlap |
| Actuation type | Electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 170 l/min ... 190 l/min |
| Pneumatic working port | M7 |
| Operating voltage | 24V DC |
| Operating pressure | 1.5 bar ... 8 bar |
| Design | Piston gate valve |
| Reset method | Pneumatic spring |
| Degree of protection | With plug socketIP40IP65 |
| Certification | RCM compliance markc UL us - Recognized (OL)c CSA us (OL) |
| Nominal width | 2.7 mm |
| Type code | VUVG |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Non-detentingDetentingCovered |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |

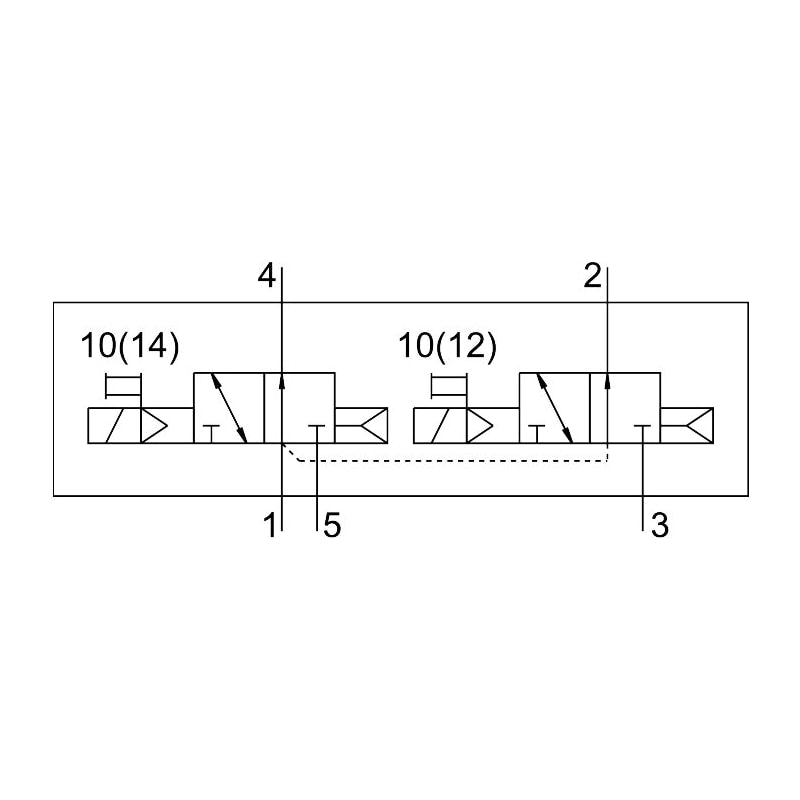

| Symbol | 00992902 |
| Pilot pressure | 1.5 bar ... 8 bar |
| Suitability for vacuum | no |
| Switching time off | 16 ms |
| On switching time | 6 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700 µs |
| Max. negative test pulse on 1 signal | 900 µs |
| Coil characteristics | 24 V DC: 1.0 W24 V DC: low-current phase 0.3 W, high-current phase 1.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
