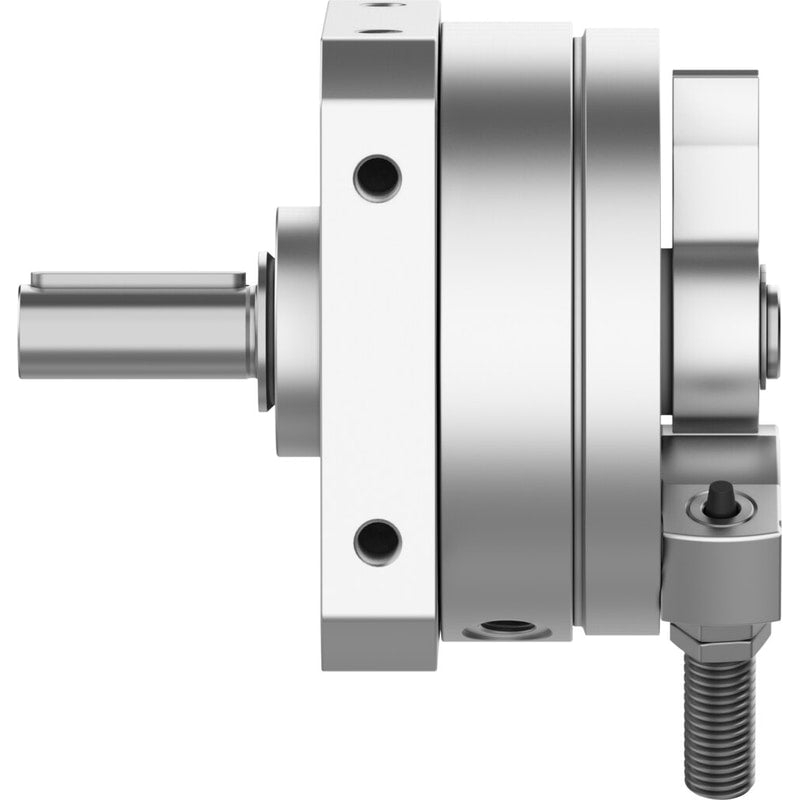

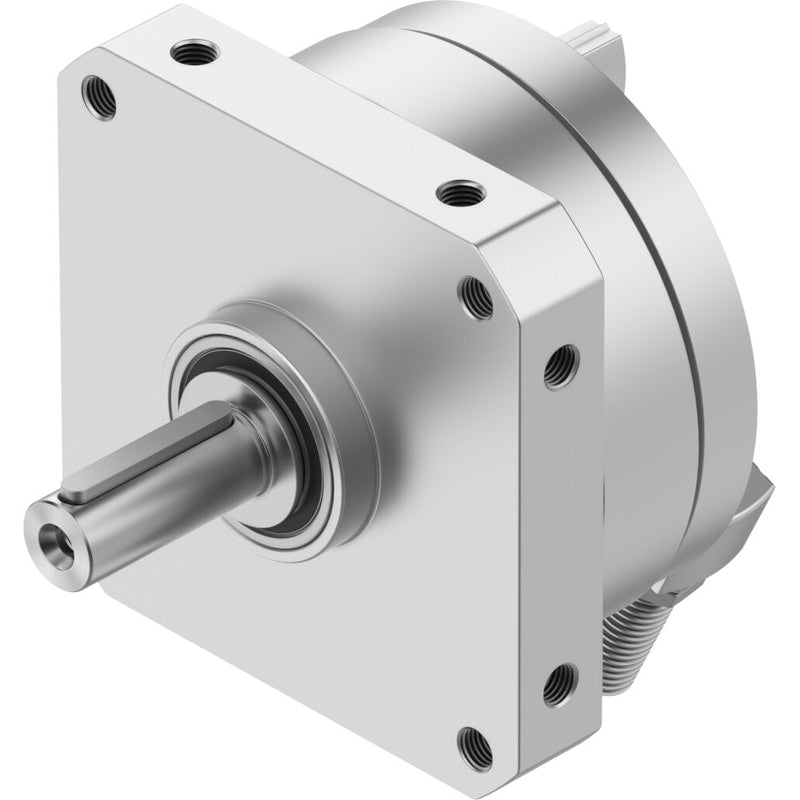

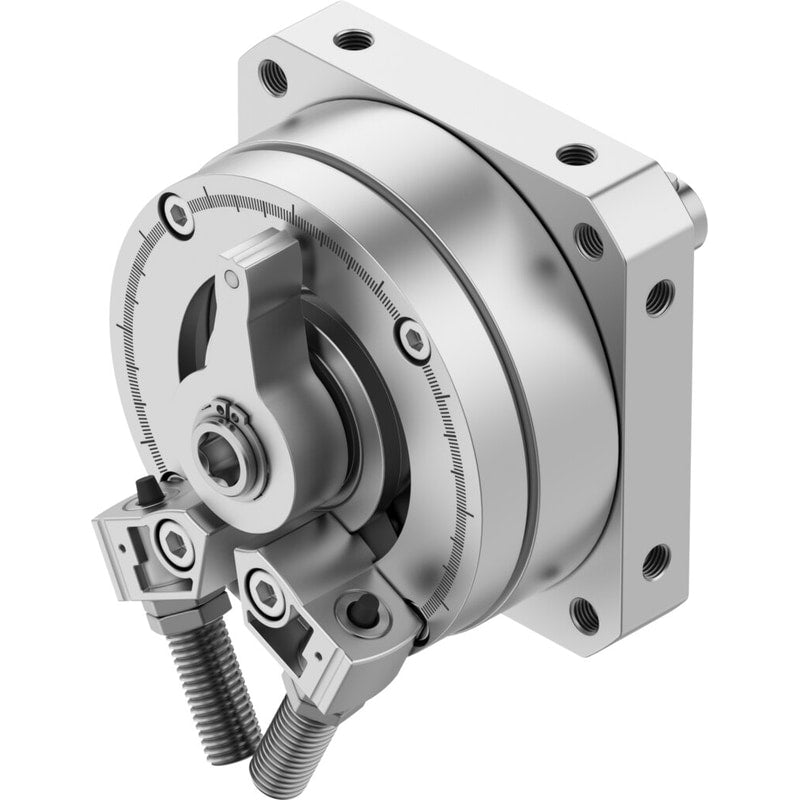

Rotary actuator
DSM-32-270-P1-A-B
566209
GTIN 4052568213480
Vendor Festo
- Size
- 32
- Theoretical torque at 6 bar
- 10 Nm
- Swivel angle
- 0 deg - 246 deg
- Position sensing
- For proximity sensor
Regular price
$793.40
Unit price
DSM-32-270-P1-A-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSM-32-270-P1-A-B
Regular price
$793.40
Unit price
DSM-32-270-P1-A-B is backordered and will ship as soon as it is back in stock.
semi-rotary drive DSM-32-270-P1-A-B With spigot shaft, elastic cushioning rings/pads at both ends with fixed stop. Size=32, Cushioning angle=6,5 deg, Rotation angle adjustment range=0 - 246 deg, Swivel angle=0 - 246 deg, Cushioning=P1: Flexible cushioning rings/plates with stop at both ends
| Size | 32 |
|---|---|
| Cushioning angle | 6.5 deg |
| Rotation angle adjustment range | 0 ... 246 deg |
| Swivel angle | 0 ... 246 deg |
| Cushioning | P1: Flexible cushioning rings/plates with stop at both ends |
| Assembly position | Any |
| Fine adjustment | '-6 deg |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | For proximity sensor |
| Operating pressure | 1.5 ... 10 bar |
| Max. swivel frequency at 6 bar | 2 Hz |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
