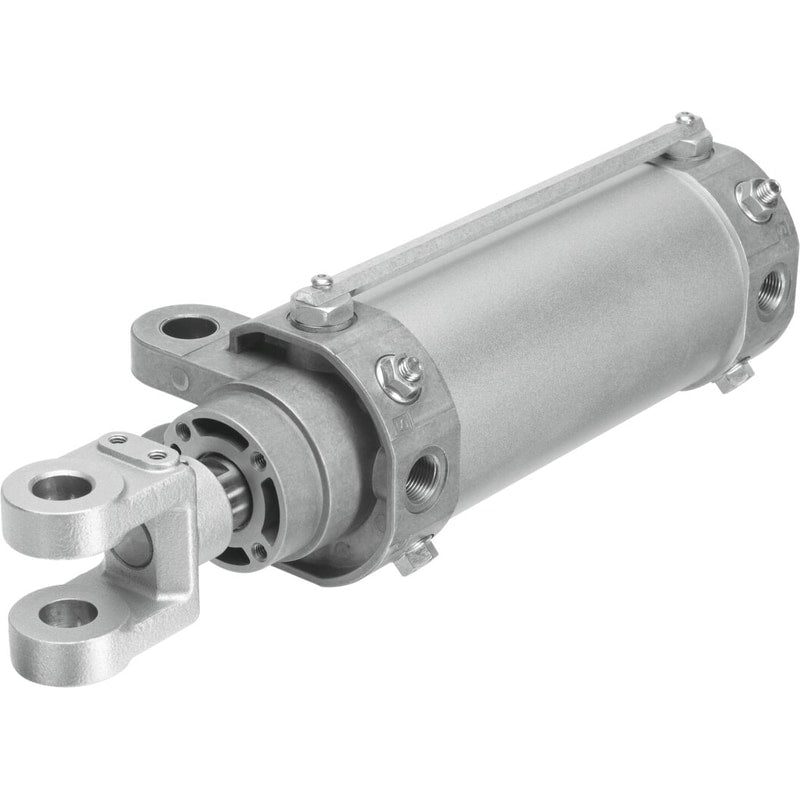

Hinge cylinder
DW-80-150-Y-A-G
565802
GTIN 4052568213336
Vendor Festo
- Piston diameter
- 80 mm
- Stroke
- 150 mm
- Pneumatic connection
- G3/8
- Theoretical force at 6 bar, advancing
- 3016 N
- Theoretical force at 6 bar, retracting
- 2721 N
Regular price
$427.45
Unit price
DW-80-150-Y-A-G is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DW-80-150-Y-A-G
Regular price
$427.45
Unit price
DW-80-150-Y-A-G is backordered and will ship as soon as it is back in stock.
| Stroke | 150 mm |
|---|---|
| Piston diameter | 80 mm |
| Piston rod thread | M20x1.5 |
| Wide rod clevis/swivel mounting | 28 mm |
| Type code | DW |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Design | PistonPiston rod with rod clevisSwivel mounting on bearing capCylinder barrel |
| Velocity control | Integrated flow control at both ends |
| Position sensing | For proximity sensor |
| Piston rod end | External thread with rod clevis |
| Operating pressure | 1 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Ambient temperature | -10 °C ... 60 °C |
| Impact energy in the end positions | 1.8 J |
| Cushioning length | 30 mm |
| Theoretical force at 6 bar, retracting | 2721 N |
| Theoretical force at 6 bar, advancing | 3016 N |
| Moving mass at 0 mm stroke | 1651 g |
| Additional weight per 10 mm stroke | 65 g |
| Basic weight with 0 mm stroke | 4185 g |
| Additional moving mass per 10 mm stroke | 39 g |
| Alternative connections | See product drawing |
| Type of mounting | With swivel mounting on bearing capWith accessories |
| Pneumatic connection | G3/8 |
| Rod clevis material | Cast steelTempered steel |
| Note on materials | RoHS-compliant |
| Scraper material | Bronze |
| Cover material | Die-cast aluminumAnodized |
| Seals material | NBR |
| Piston rod material | Tempered steelHard-chrome-plated |
| Material of cylinder barrel | Wrought aluminum alloyAnodized |
