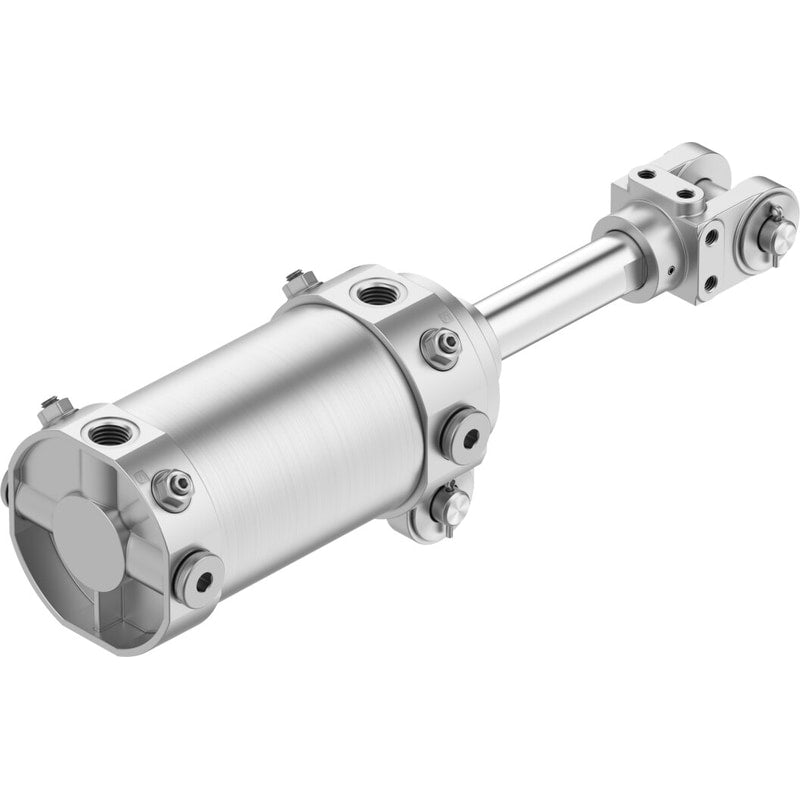

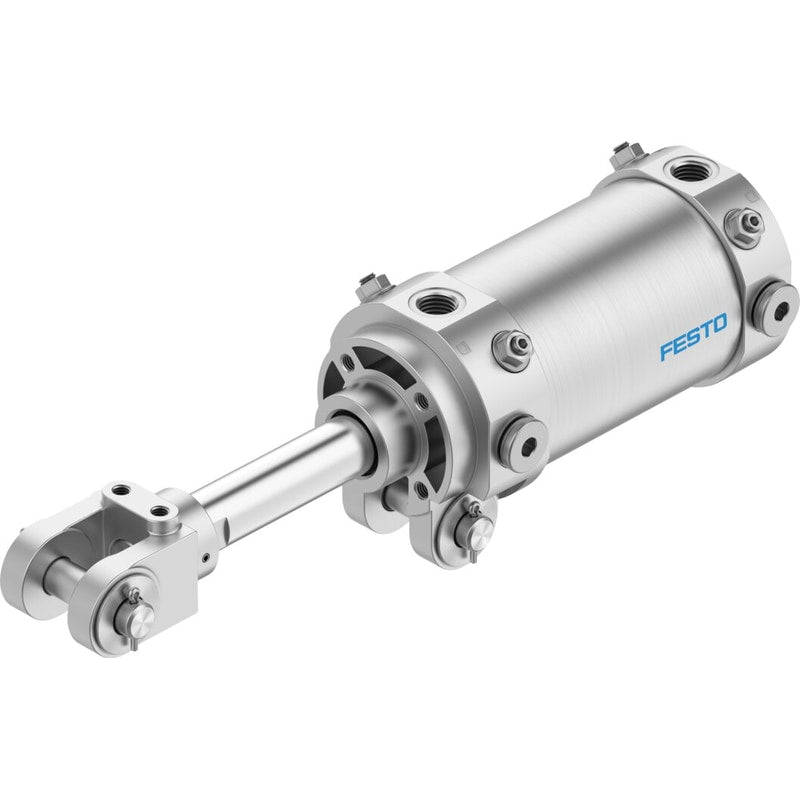

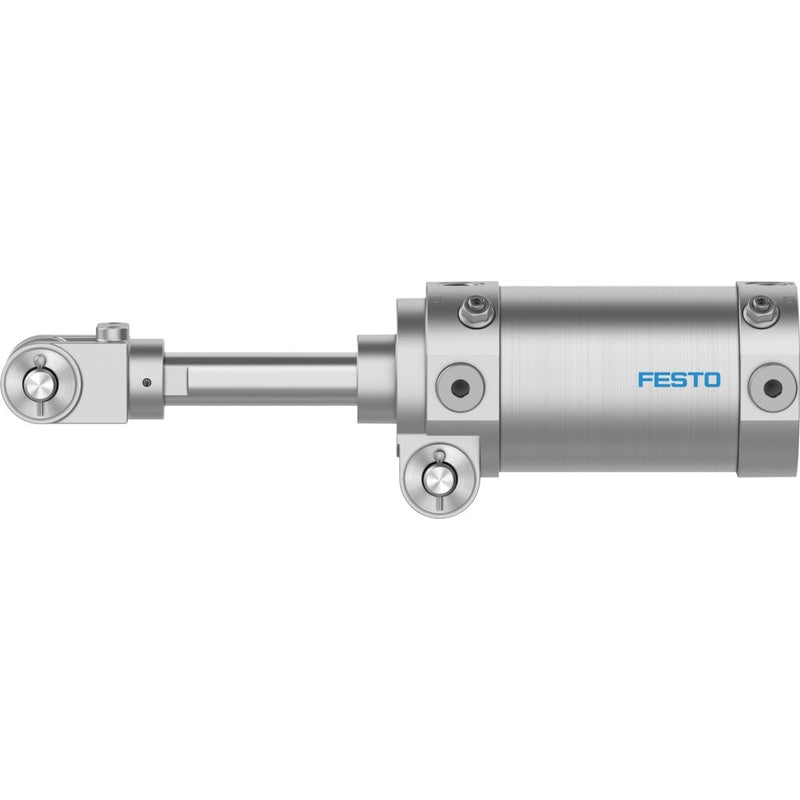

Hinge cylinder
DWB-63-50-Y-AB-G
565772
GTIN 4052568213152
Vendor Festo
- Piston diameter
- 63 mm
- Stroke
- 50 mm
- Pneumatic connection
- G1/4
- Theoretical force at 6 bar, advancing
- 1870 N
- Theoretical force at 6 bar, retracting
- 1682 N
Regular price
$248.13
Unit price
DWB-63-50-Y-AB-G is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DWB-63-50-Y-AB-G
Regular price
$248.13
Unit price
DWB-63-50-Y-AB-G is backordered and will ship as soon as it is back in stock.
| Stroke | 50 mm |
|---|---|
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Wide rod clevis/swivel mounting | 19.5 mm |
| Type code | DW |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Design | Piston rod with rod clevisCylinder barrelSwivel mounting on bearing capPiston |
| Velocity control | Integrated flow control at both ends |
| Position sensing | For proximity sensor |
| Piston rod end | External thread with rod clevis |
| Operating pressure | 1 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Ambient temperature | -10 °C ... 60 °C |
| Impact energy in the end positions | 1.3 J |
| Cushioning length | 20 mm |
| Theoretical force at 6 bar, retracting | 1682 N |
| Theoretical force at 6 bar, advancing | 1870 N |
| Moving mass at 0Â mm stroke | 741 g |
| Additional weight per 10Â mm stroke | 42 g |
| Additional moving mass per 10Â mm stroke | 25 g |
| Alternative connections | See product drawing |
| Type of mounting | With accessoriesWith swivel mounting on bearing cap |
| Pneumatic connection | G1/4 |
| Rod clevis material | Cast steelTempered steel |
| Note on materials | RoHS-compliant |
| Scraper material | Bronze |
| Cover material | Die-cast aluminumAnodized |
| Seals material | NBR |
| Piston rod material | Hard-chrome-platedTempered steel |
| Material of cylinder barrel | Wrought aluminum alloyAnodized |
