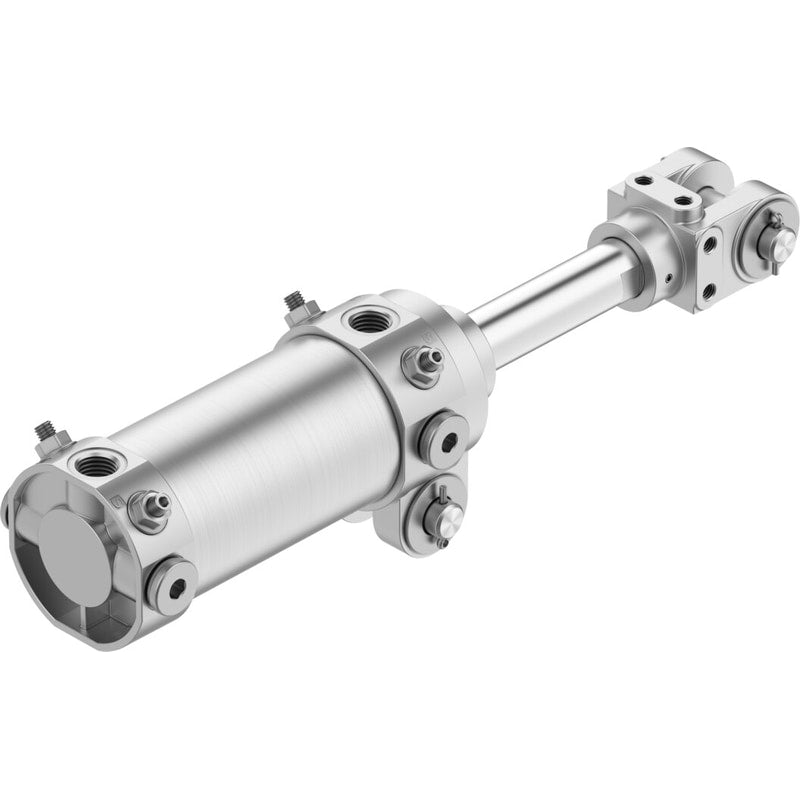

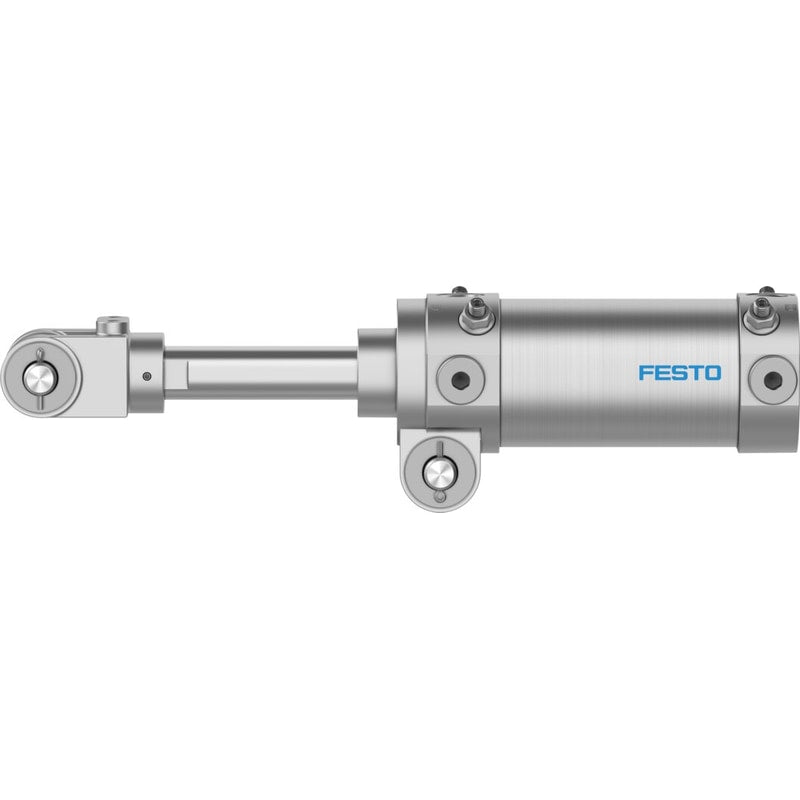

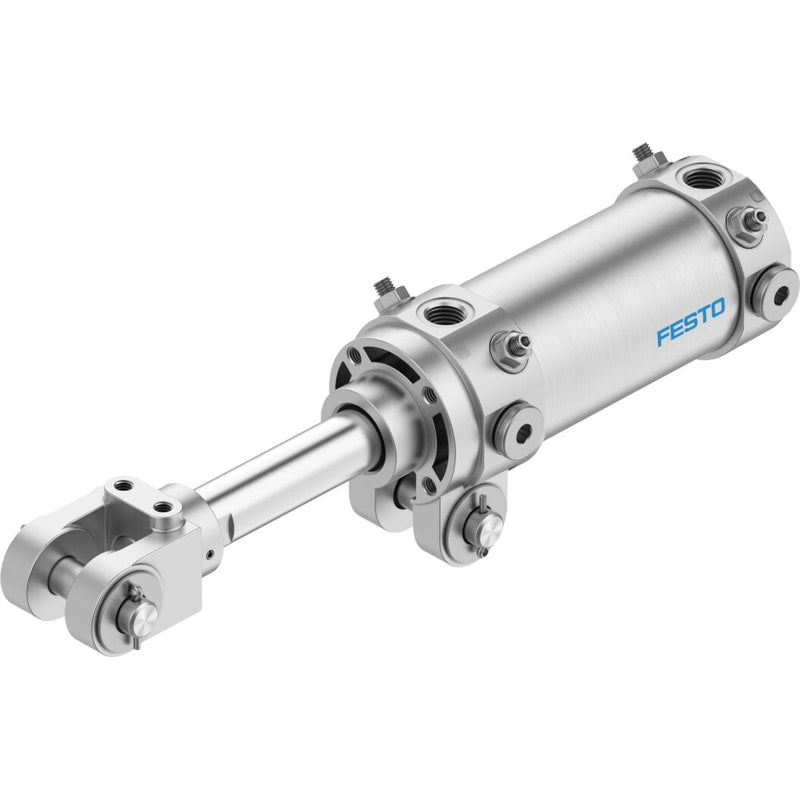

Hinge cylinder
DWA-50-50-Y-A-G
565726
GTIN 4052568212698
Vendor Festo
- Piston diameter
- 50 mm
- Stroke
- 50 mm
- Pneumatic connection
- G1/4
- Theoretical force at 6 bar, advancing
- 1178 N
- Theoretical force at 6 bar, retracting
- 990 N
Regular price
$230.36
Unit price
DWA-50-50-Y-A-G is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DWA-50-50-Y-A-G
Regular price
$230.36
Unit price
DWA-50-50-Y-A-G is backordered and will ship as soon as it is back in stock.
hinge cylinder DWA-50-50-Y-A-G Part number: 565726
| Stroke | 50 mm |
|---|---|
| Piston diameter | 50 mm |
| Piston rod thread | M16x1,5 |
| Distance of rod clevis to swivel mounting | 16 mm |
| Cushioning | PPV: Pneumatic cushioning adjustable at both ends |
| Assembly position | Any |
| Design structure | PistonPiston rod with rod clevisSwivel mounting on bearing capCylinder barrel |
| Speed regulation | Integrated flow control valves on both sides |
| Position detection | For proximity sensor |
| Piston-rod end | Male thread with rod clevis |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
