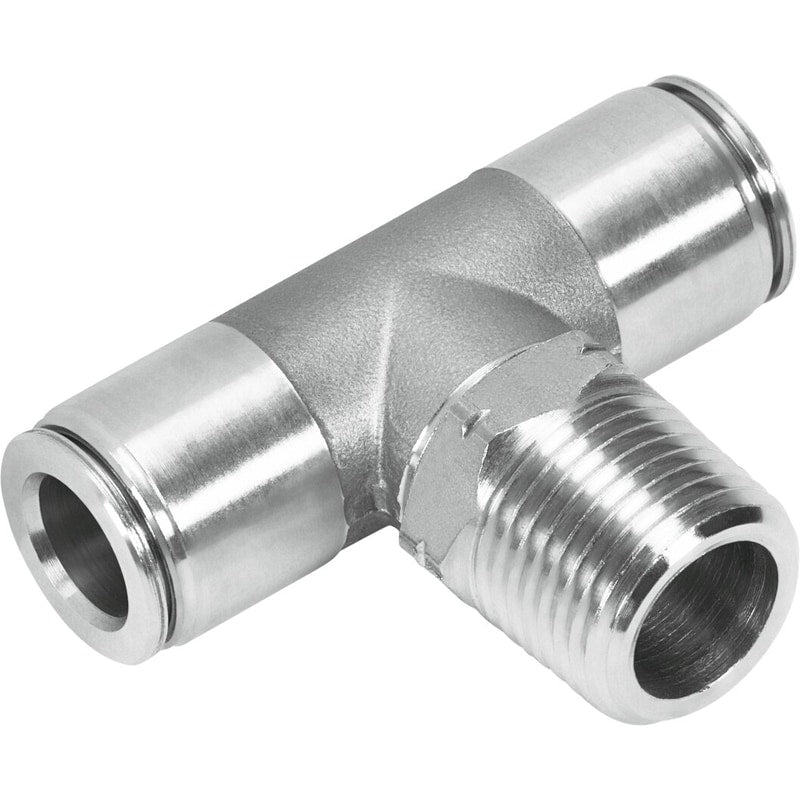

Push-in T-fitting
CRQST-1/4-5/16-U
565337
GTIN 4052568367602
Vendor Festo
- Pneumatic connection 1
- Male thread 1/4 NPTF
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/16"
- Ambient temperature
- -20 °C - 150 °C
- Nominal width
- 5.994 mm
- Operating pressure for entire temperature range
- -0.95 bar - 14 bar
Regular price
$117.20
Unit price
CRQST-1/4-5/16-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRQST-1/4-5/16-U
Regular price
$117.20
Unit price
CRQST-1/4-5/16-U is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Type of mounting | External hexagon 35/64 |
| Design | T-shape |
| Nominal width | 5.994 mm |
| Type code | CRQST |
| Mounting position | Any |
| Pack size | 1 |
| Design | Push-pull principle |
| Operating pressure for entire temperature range | -0.951 bar ... 14.003 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| For use in the food industry | See supplementary material information |
| Ambient temperature | -20 °C ... 150 °C |
| Max. tightening torque | 16 Nm |
| Product weight | 36.997 g |
| Usable connector cables | PFAN |
| Pneumatic connection 1 | External thread NPTF1/4-18 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 5/16" |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | High-alloy stainless steel |
| Releasing ring material | High-alloy stainless steel |
| Material of tubing seal | FPM |
| Material of tube retaining claw | High-alloy stainless steel |
